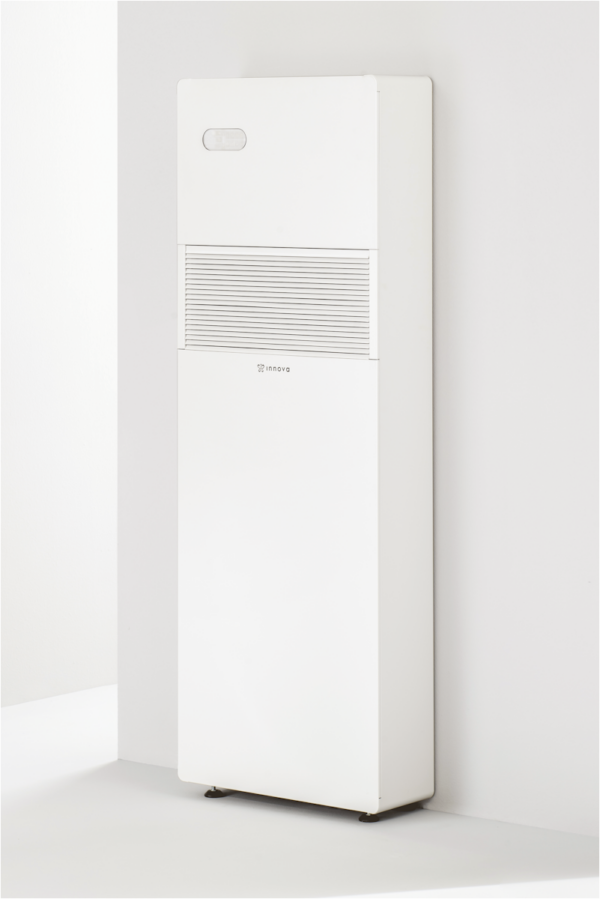

Vertical Innova 2.0 10HP Inverter Monoblock Heat Pump without Outdoor Unit

Innova 2.0 10HP Vertical Inverter Monoblock Air Conditioner (Heat Pump) without Outdoor Unit

Innova 2.0 10 HP Vertical Air Conditioner

The Innova 2.0 Inverter 10HP Vertical is an indoor-only heat pump designed for locations where installing a conventional heat pump or a heat pump with an outdoor unit is impossible, impractical, expensive, or prohibited.

The Innova 2.0 10 HP Verticale air conditioner can be installed easily without the need for a STEK-certified technician, making installation both affordable and quick. There is no longer a need for an outdoor unit on the exterior wall of the house, which detracts from the home’s appearance and is impractical.

The Innova 2.0 air conditioner can be mounted at various heights on the wall, allowing you to customize its placement to suit your interior. This makes the air conditioner convenient and flexible to install. The heat pump can be used for cooling, heating, and dehumidifying.

Thanks to the use of high-quality components and extensive noise reduction measures, the unit is very quiet, and its noise level is comparable to that of standard air conditioners used outdoors. It’s ideal for homes and hotel rooms—or even healthcare facilities.

The air conditioner is easy to control using the control panel or the included remote control, but also via a smartphone, tablet, or computer using the Innova App, which allows you to control the unit from another room or anywhere with an internet connection. It is also possible to control multiple units simultaneously, for example, when used in a hotel or office complex.

This outdoor-unit-free air-source heat pump uses inverter technology, which allows the air conditioner to cool the room faster and save energy. In addition to cooling, the unit is also capable of heating using efficient heat pump technology.

With a depth of 185 mm, the Innova 2.0 is very slim and features a beautiful, neutral design that fits perfectly into any interior.

The Innova 2.0 Inverter 10HP is suitable for rooms of up to approximately 41 m² (103 m³), depending on the circumstances.

Innova air conditioners are shipped on pallets and therefore cannot be delivered to a package locker.

Why Choose the Innova Verticale Air Conditioner?

• It is not possible to install the outdoor unit
• An external device is impractical
• The external device detracts from the appearance of the building
• Can be mounted on a narrow wall
• Cooling and Heating Effects of Heat Pump Technology
• Slim design, only 185 mm deep
• Quiet work
• Low energy consumption
• Easy maintenance
• Easy control via the control panel, remote control, or smartphone
• Wi-Fi connection for remote control
• Self-closing ventilation grilles; all necessary (installation) materials are included
• Suitable for rooms up to approximately 41 m² (103 m³), depending on the circumstances
• You can install the device yourself or have an installer install it
• Air Conditioning for an Apartment
• Air conditioner for the room
• Air conditioner for the bedroom
• Air conditioning in the hotel
• Air Conditioning for the Hospital
• Air conditioning for the office

Overview of Features

• The Innova 2.0 air conditioner, which provides both cooling and heating without an outdoor unit, can cool (max 2.6 kW) as well as heat (max 2.64 kW) the air; if the unit is used solely for cooling, condensate drainage is not always necessary (recommended).
• A slim design with a depth of only 185 mm. The unit is very slim and can be easily integrated into interior spaces or used to replace an existing radiator.
• Quiet operation: Thanks to the use of top-quality components, sound-dampening materials, and advanced technology, the Innova is so quiet that it cannot be distinguished from an outdoor unit, Inverter technology and quiet, brushless fan motors ensure that noise levels at low fan speeds are only 27 dB. Thanks to this new technology, air movement is practically the only source of noise.
• Low energy consumption, inverter technology, and BLDC fan motors save energy; at the same time, the use of inverter technology provides greater power, allowing the room to reach the desired temperature more quickly and maintain it with lower energy consumption.
• Easy installation; the unit can be mounted low or high on the wall. The absence of an external unit simplifies installation—all that is needed is to install the air supply and drain lines. It does not require an STEK-certified technician, and there is no need to connect refrigerants, which prevents leaks and ensures reliable operation.
• Easy to use; the device is easy to control via the control panel or the included remote control. The timer allows you to set the on and off times, and the control panel can be locked to prevent unauthorized use.
• Cooling, heating, and dehumidifying—in addition to cooling, the Innova 2.0 with a heat pump is also capable of efficiently heating a room, which means it extracts heat from the outside air even at very low temperatures (down to -10 °) to maintain a comfortable indoor temperature. With its dehumidification function and no outdoor unit, the Innova 2.0 air conditioner can also remove excess moisture from your home, summer cottage, vacation home, or hotel room.
• Can be controlled via a remote control, smartphone, tablet, or computer. The device has a Wi-Fi connection, so you can use it anywhere with an internet connection, allowing you to control the Innova 2.0 remotely to cool, heat, or dehumidify the room so that it’s already at a comfortable temperature and ready for use.
• Night Mode: The Innova 2.0 has a special mode for nighttime operation.
• Self-closing ventilation openings: when the air conditioning system is not in use, the flaps on the exterior wall close to prevent contaminants such as dust or insects from entering the air duct. A steel mesh screen is also available for separate purchase (prevents insects from entering the air duct).

The covers can be painted the same color as the exterior wall so that the openings are practically invisible

Inverter technology for energy-efficient and powerful operation

Efficient cooling and heating using a heat pump

Easy to use The Innova 2.0 Inverter air conditioner is easy to use via its touchscreen panel or the included remote control, which allows you to set the desired temperature, use night mode, seton and off times, and choose between cooling, heating, ventilation, and dehumidification. The control panel can also be locked to prevent accidental operation. 2.0 Inverter devices can be connected to a Wi-Fi network, allowing you to operate the device via the InovApp on your smartphone or tablet, or remotely. This app is also available as a browser-based version for your computer. To limit energy consumption in a hotel room, you can also set minimum and maximum limits.

Easy to install, minimal external impact

INSTALLATION MANUAL ING

USER MANUAL ING

CATALOG ING

The Innova 2.0 Inverter heat pump is easy to install without having to connect refrigerant lines; the unit can be mounted low or high (on an exterior wall).

2.0 Inverter units can be mounted either high or low; if the unit is mounted high, it is recommended to install the optional base plate for a clean finish.

Air conditioner with outdoor unit		Standard air conditioner without an outdoor unit		Innova air conditioner without an outdoor unit
