TTW 35000 S Drum Fan, 32,400 m³/h

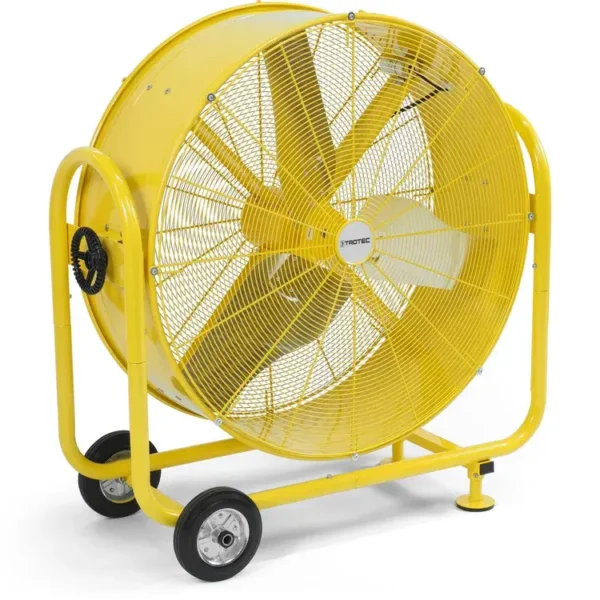

TTW 35000 S Drum Fan

The TTW 35000 S fan is the optimal choice for all ventilation tasks in production environments, in agriculture, or in storage facilities, where high air exchange rates should be achievable even with a modest investment.

Thanks to its two-stage adjustable airflow of up to 32,400 m³/h, this powerful drum fan can provide the necessary air exchange even in large rooms or halls.

Thanks to its removable frame, the galvanized steel housing is easy to transport and supports a tiltable fan drum for adjusting the air blower’s angle up to a vertical airflow position. This allows the airflow to be directed even toward high walls or ceilings, making the TTW 35000 S blower a flexible solution for the effective ventilation of stage, film, and photo sets.

Benefits of an internship:

• A budget-friendly option for semi-professional ventilation equipment
• Airflow up to 32,400 m³/h
• A ready-to-connect device that is easy to use
• Adjustable angle of inclination from horizontal to vertical
• Flexible repositioning thanks to the cart’s design

Here are some technical specifications for the TTW 35000 S:

• Airflow 1: 24,600 m³/h
• Airflow 2: 32,400 m³/h
• Maximum rotor speed: 850 min¹¹
• Power 1: 0.62 kW
• Power Level 2: 0.75 kW
• Noise Level 1: 65 dB(A)
• Noise Level 2: 75 dB(A)
• Power connection: 16 A
• Mains voltage: 230 V / 50 Hz
• Plug: CEE 7/7
• Mobility: mobile
• Dimensions (length x height x width): 1230 x 525 x 1140 mm
• Weight: 49 kg
