TFV 1200 Centrifugal Fan
The optimal solution for all applications involving air transport over long distances.
Proper ventilation is not only important for a pleasant working environment, but is also essential in many areas for occupational safety reasons and in accordance with official regulations.
Ventilating rooms removes harmful substances such as paint and varnish fumes, welding fumes, dust particles, carbon monoxide, nitrogen oxides, carbon dioxide, and water vapor.
The TFV 1200 high-pressure centrifugal fan is well-suited for such tasks, as it delivers up to 54,000 m³/h of air even over long distances with high back pressure and remains extremely stable in harsh operating environments.
Since this fan draws in air axially and expels it radially, it is not only effective at handling heavily contaminated air with high dust content, but also ensures high and stable performance curves.
Here are a few of the practical advantages of the TFV 1200, in brief:
- An exceptionally sturdy device with a high load capacity
- Splash-proof version (IP55)
- Can also be used in very dusty rooms
- The fan motor is located outside the main airflow
- stable regions of the characteristic curve and consistently high pressure
Here is an overview of the TFV 1200’s technical specifications:
- Free-flow air volume: 54,000 m³/h
- Air discharge velocity: 38 m/s (136.8 km/h)
- Fan speeds: stepless (frequency control)
- maximum air pressure*: 2150 Pa
- Maximum transmission medium temperature: 80 °C
- Environmental conditions: -20 °C to 40 °C
- Line voltage: 400 V / 50 Hz (65 A)
- Power connection: CEE 64 A
- Power consumption: 37 kW
- Discharge nozzle: series (ø 630 mm)
- Sound level (at a distance of 1.5 m): 106 dB (A)
- Body: steel, powder-coated, 2K paint
- Dimensions (including frame): 2005 x 1650 x 2300 mm
- Weight: 750 kg
*At 20 °C, 500 m above sea level (NN)

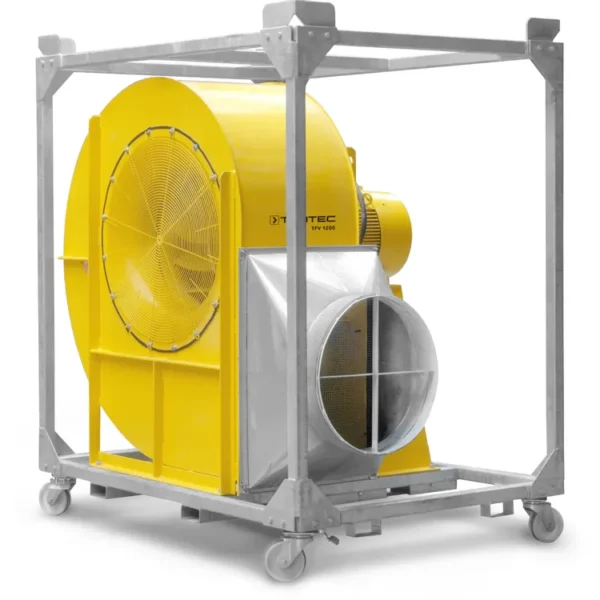

The photo shows the TFV 1200 mounted on a frame. It is not included in the package and is available upon request!
Price of the frame: 4,641 euros, including VAT.
| Air volume | ||
|---|---|---|
| Max – free outlet flow [m³/h] | 54,000 | |
| Air volume at atmospheric pressure | ||
| m³/h | 45,000 | |
| Pa | 2150 | |
| airflow | ||
| while blowing out | ||
| sucking | – | |
| air discharge velocity | ||
| Ms. | 38 | |
| km/h | 136.8 | |
| Fan | ||
| fan speed levels | stepless | |
| air pressure | ||
| Maximum pressure [Pa] | 2650 | |
| Environmental Conditions | ||
| Temperature range min [°C] | -20 | |
| Maximum temperature range [°C] | 40 | |
| security feature | ||
| IP Protection Class | 55 | |
| electrical values | ||
| Power connection | 400 V/50 Hz | |
| Power consumption [kW] | 37 | |
| Recommended protection [A / motor protection switch] | 80 | |
| Rated Current [A] | 65 | |
| electrical connection | ||
| plug plug | CEE 63 A | |
| cable length [m] | ||
| hose connection | ||
| inlet manifold [mm] | – | |
| outlet nozzle [mm] | 630 | |
| sound levels | ||
| Distance 1 m [dB(A)] | 106 | |
| Distance 3 m [dB(A)] | 100 | |
| explosion protection | ||
| Zone | – | |
| protection class | * | |
| Dimensions | ||
| Length (without packaging) [mm] | 1900 | |
| Width (without packaging) [mm] | 1400 | |
| Height (without packaging) [mm] | 1800 | |
| Weight | ||
| (without packaging) [kg] | 750 | |
| EQUIPMENT, FEATURES, AND FUNCTIONS | ||
|---|---|---|
| residential design | ||
| Steel, powder-coated | ||
| plastic | ||
| metal | ||
| mobility | ||
| crane | ||
| forklift | ||
