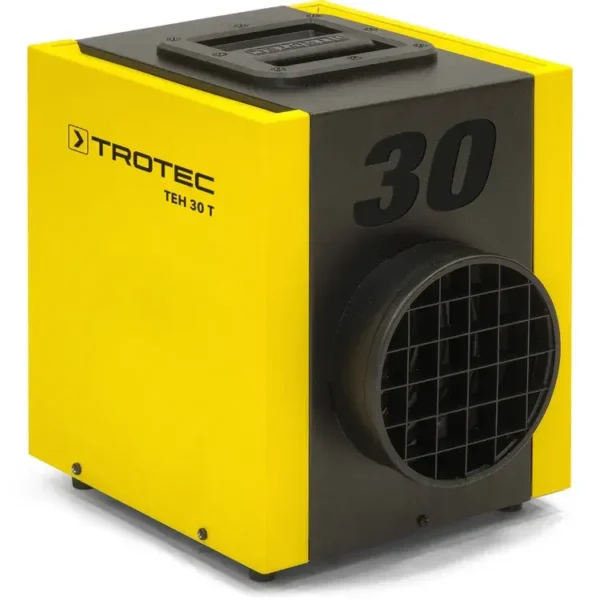

TEH 30 T 3.3 kW Electric Fan Heater
Recommended for a wide range of professional heating projects
Even from the outside, the TEH 30 T makes a first-class impression and stands out with its practical, optimized German industrial design, which is protected as a utility model. But its inner qualities are also impressive in every sense:
The highly wear-resistant sheet steel construction of this electric heater is equipped with a durable protective cover and a well-designed, airflow-optimized chassis that ensures a focused flow of hot air without turbulence losses, It also features a thermally insulated hose connector with an outlet grille, which ensures maximum hot-air directionality.
Thanks to the infinitely adjustable thermostat control, the TEH 30 T heating elements turn on at a precise temperature only when necessary, in addition to the continuous-run fan. A red indicator light briefly illuminates when the heating elements are active.
Frequent mobile use, transport, or storage is a breeze with the TEH 30 T:
The specially designed recessed Trotec Ergo handle with an internal grip clamp provides optimal grip when carrying the electric heater — and thanks to the two practical stacking grooves installed on the unit, the TEH 30 T can be stored safely in the room, saving space during transport and in storage.
Its compact size, impressive performance, and the ability to deliver warm air via connectable warm-air hoses make the TEH 30 T the ideal choice when it comes to highly mobile heating solutions for producing warm, clean air on small construction sites, in warehouses or production facilities, and in many other applications.
Here are a few practical benefits, in brief:
- Highly wear-resistant sheet steel construction with a wear-resistant protective coating
- A chassis optimized for airflow, ensuring a focused and turbulence-free flow of warm air
- A practical stacking system for stable, space-saving storage and transport
- Minimal heating of the outer jacket thanks to the double-walled housing design
- Extremely low-maintenance design
- Built-in thermostat
- The sturdy Trotec Ergo recessed handles, which feature an inner grip, ensure optimal comfort when carrying
- Practically optimized German industrial design—registered design
- Stacking multiple models of the same size
| heating capacity | ||
|---|---|---|
| Stage 1 [kW] | 3.3 | |
| Maximum Level [kcal] | 2,837 | |
| Air volume | ||
| Max. flow rate [m³/h] | 300 | |
| Air Pressure | ||
| Max. pressure [Pa] | 40 | |
| Rise in temperature | ||
| [°C] | 75 | |
| Fan | ||
| axial | + | |
| radial | ||
| Number of fan speeds | 1 | |
| Electrical Values | ||
| Power Connection | 220–240 V / 50 Hz | |
| Rated current consumption [A] | 15 | |
| Recommended protection [A] | 16 | |
| Power consumption [kW] | 3.3 | |
| Electrical Connection | ||
| Plug | KIE 7/7 | |
| on the client side | ||
| Cable length [m] | 2.75 | |
| Sound Values | ||
| Distance 1 m [dB (A)] | 63 | |
| Hose Connection | ||
| Hose Connection | ||
| Diameter [mm] | 155 | |
| Maximum hose length [M] | 7 | |
| dimension | ||
| Length (without packaging) [mm] | 325 | |
| Width (without packaging) [mm] | 260 | |
| Height (without packaging) [mm] | 332 | |
| weight | ||
| (without packaging) [kg] | 10.5 | |
| EQUIPMENT, FEATURES, AND FUNCTIONS | ||
|---|---|---|
| service | ||
| Unregulated thermostat | ||
| Overheating Protection | ||
| Operation Indicator Light | ||
| On/Off Switch | ||
| Automatic shutdown when the target value is reached | ||
| mobility | ||
| Carrying/Transport Handle | ||
| Legs | ||
