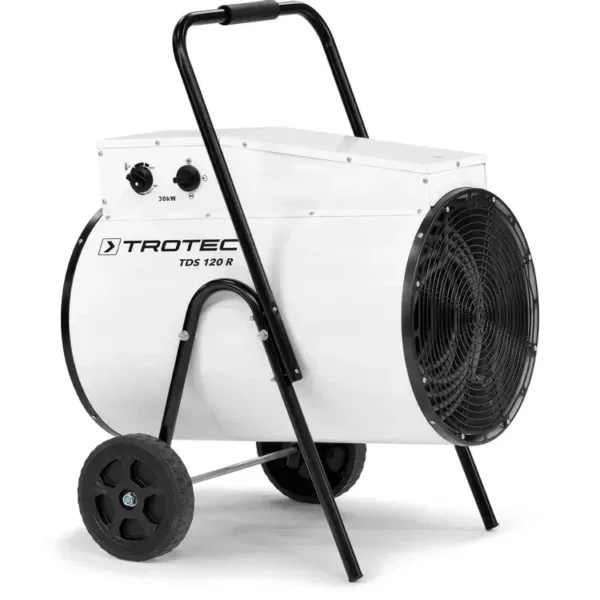

TDS 120 R Electric Heat Blower
A cost-effective standard solution for mobile electric heating
Thanks to its 30 kW heating capacity, the most powerful model in the TDS-R series offers ample power reserves for continuously heating larger spaces, making it particularly well-suited for regulating the temperature of larger areas within a building.
The TDS 120 R electric heater features a fully galvanized and painted steel body with an easily movable and stable support structure, and includes high-quality stainless steel heating elements, which generate impressive heat immediately after being turned on, distributed in large quantities by a high-circulation fan.
The desired temperature can be adjusted as needed using the seamlessly integrated thermostat, and the maximum heating capacity of the selective heat can be increased to 30 kW using a two-stage switch. If desired, the fan can also be used in fresh air circulation mode without the heating function.
The budget-optimized TDS 120 R electric heater also proves its effectiveness when drying buildings: unlike direct-fired gas or oil heaters, this electric heater does not consume oxygen or produce water vapor or combustion gases when generating hot water. Air—ideal for heating indoor spaces, especially to support dehumidifiers during accelerated building drying.
Here are a few practical benefits, in brief:
- Multi-level temperature control with 2 heat settings
- Integrated thermostat for a continuous flow of hot air
- Overheating Protection
- Fan motor with thermal protection
- Condensation-free heat—no oxygen consumption—making it ideal for heating the cabin
- Easy to transport and simple to use
- The fan can also be used without the heating function
Possible areas of application:
- Auto Repair Shops
- at construction sites
- Assembly Accessories
- gastronomy
- Warehouses and Work Areas
- Greenhouses
- and many others…
Here are some technical specifications for the TDS 120 R electric heater:
- Maximum heating capacity: 30 kW / 25,800 kcal
- Air volume: 1,900 m³/h
- Power consumption: 43.3 A.
- Line voltage: 400 V / 50 Hz
- Power connection: CEE 63 A, 5-pin
- Connection cable: accessories
- Thermostat: built-in
- Mobility: mobile
- Noise level: 61 dB (A)
- Overheating protection: yes
- Protection Class: IP44
- Dimensions L x W x H: 860 x 565 x 645 mm
- Weight: 32.5 kg
