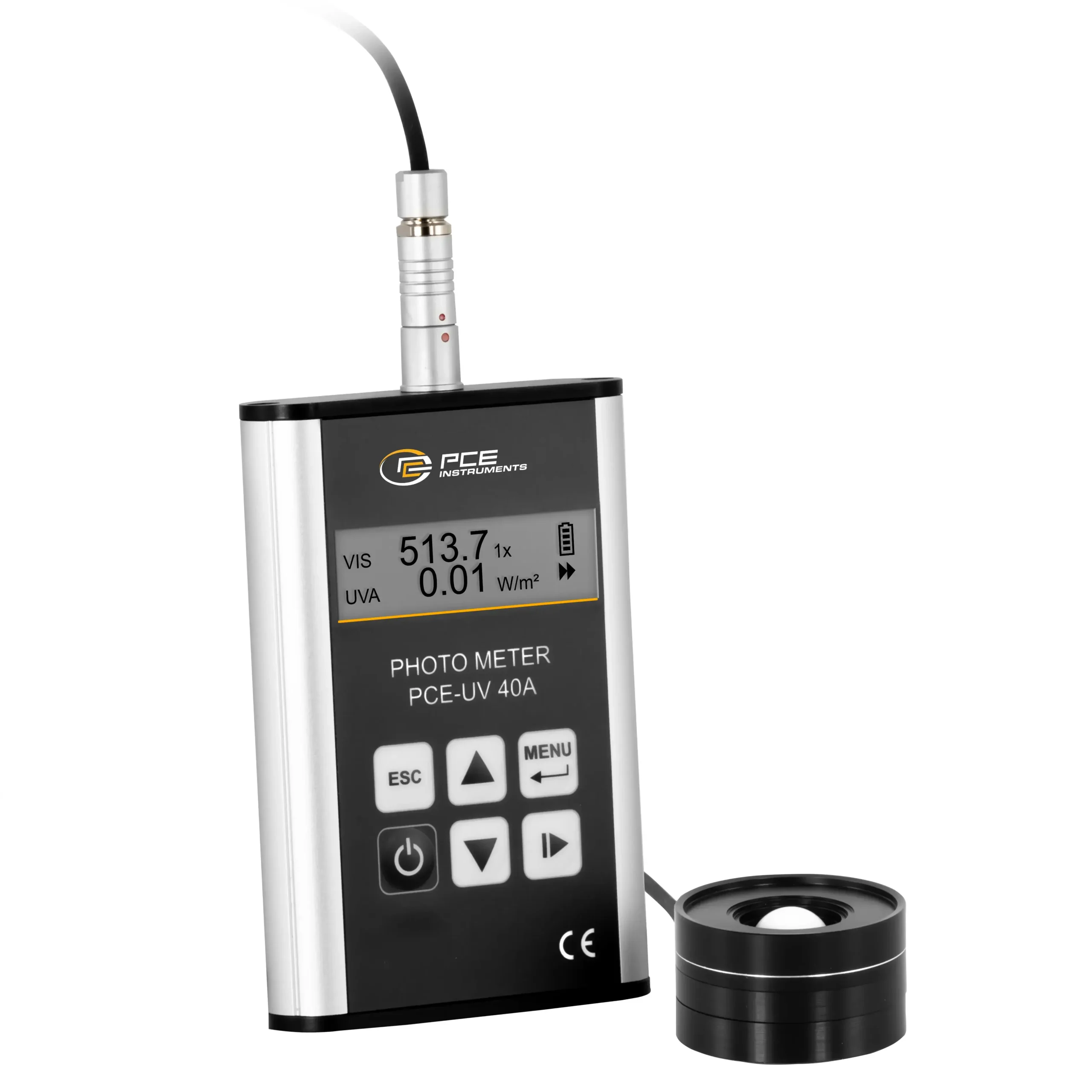

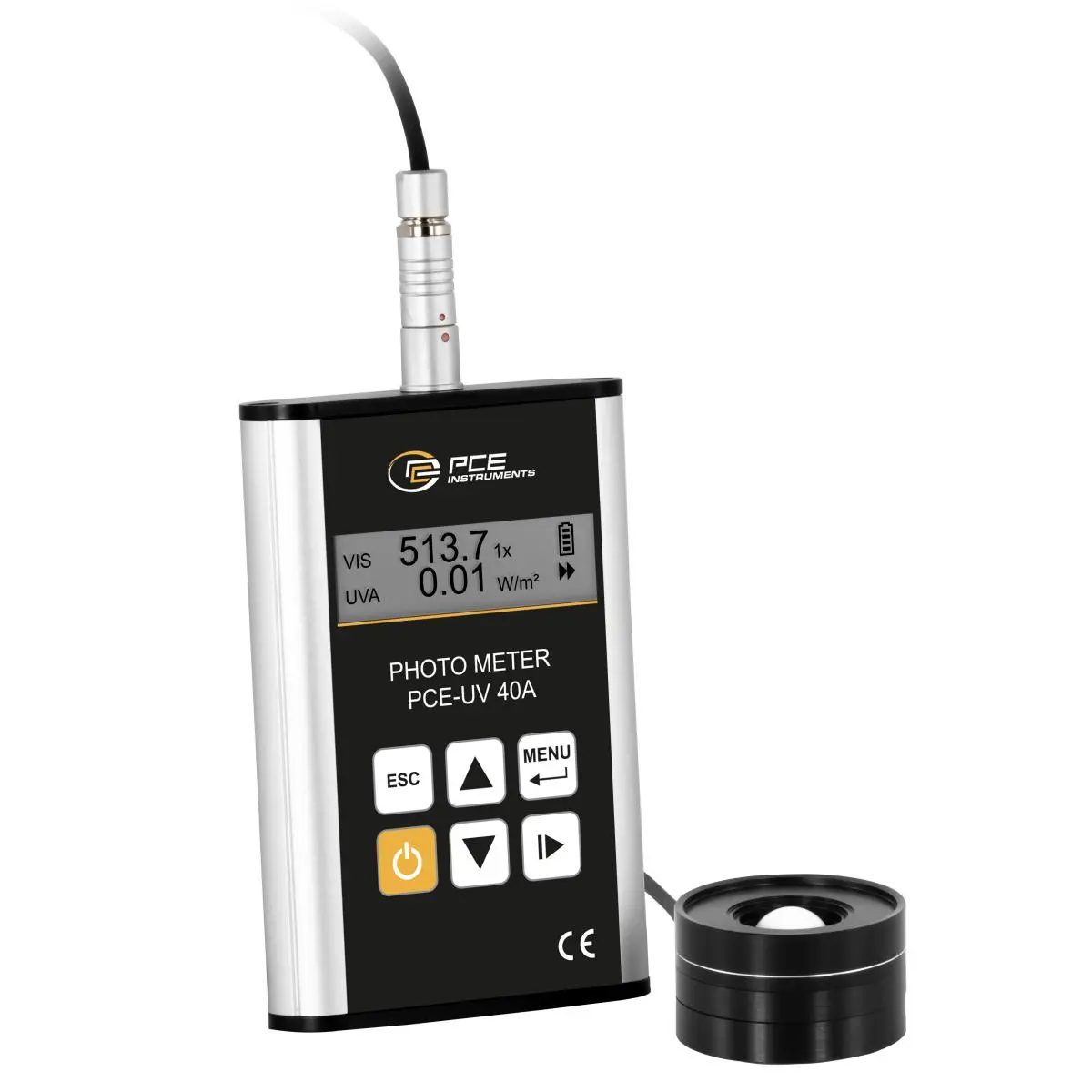

PCE-UV 40A UV and Visible Light Meter
UV Meter / UV Tester with External Sensor / Simultaneous Measurement of UVA and Light / Measurement Independent of Lamp Type / Measurement Memory
The UV Meter / UV Tester is a highly advanced instrument characterized by its versatility and accuracy. With its two measurement channels, the UV Meter / UV Tester allows for the simultaneous measurement of UV-A radiation and visible light. This feature of the UVA meter is particularly useful for applications that require comprehensive light characterization.
The external sensor allows the UV meter/UV tester to be positioned flexibly to perform accurate measurements at various locations. This feature is useful, for example, when measuring UV light for material testing in accordance with the standards “EN ISO 9934-1 Non-destructive testing with magnetic particles” and “EN ISO 3059 Non-destructive testing, penetration testing, and magnetic particle testing,” where precise measurement of UVA is of the utmost importance. Precise measurements ensure reliable monitoring and quality assurance when processing UV-sensitive materials.
The ability to save data makes the device particularly user-friendly. Users can easily save and analyze measurement results to track long-term trends or document quality control.
Overall, the UV/light meter offers a comprehensive solution for applications that require precise measurement of UV-A radiation and visible light. With its advanced features and simultaneous measurement capabilities, it is an indispensable tool in fields such as materials testing, tanning bed control, and workplace lighting control.
Highlights
– External sensor
– Simultaneous measurement
– Two UV-A measurement ranges up to 100 W/m²
– Control of UV lamps for material testing
– Automatic measurement range switching 0 lx … 10 klx
– Precise measurement of illuminance regardless of lamp type
– Measured value memory
Specifications
| Light | |
| Measurement range | 0 lx … 10 klx |
| resolution | 0.1 lx |
| accuracy | f1 ≤ 3% |
| UV | |
| Measurement range | 0 W/m² … +100 W/m² |
| resolution | 0.01 W/m² |
| clarification | In accordance with standard EN ISO 3059 V(λ) CIE ∆λ1/10 320 – 395 nm ∆λ1/2 337 – 385 nm λmax 365 nm Sλ=313 nm < 5% Sλ=405 nm < 0.5% |
| General Technical Specifications | |
| Screen Type | LCD with backlight |
| Storage Medium | Internal memory |
| Storage Capacity | 20 discs |
| interface | Mini USB |
| Standard(s) | ISO/CIE 19476, EN ISO 3059, EN ISO 9934 |
| Measurement rate | 1 Hz |
| Menu language | English, Polish |
| Protection Class (device) | IP20 |
| Weight | 148 g / 0.3 pounds |
| Weight of the device, including packaging | 1198 g / 2.6 pounds |
| Weight of the device, including shipping and outer packaging | 1377 g / 3 pounds |
| Dimensions (W x L x H) | 118 x 72 x 20 mm / 4.6 x 2.8 x 0.8 inches |
| Other Dimensions | Probe Ø44 x 25.5 mm Probe cable length 1.5 m / 4.9 feet Extension rod 460 mm / 18.1 inches |
| Operating Conditions | -10 … 50 °C / 14 … 122 °F, 0 … 90% relative humidity |
| Storage Conditions | -10 … 50 °C / 14 … 122 °F, 0 … 80% relative humidity |
| Languages of the instructions | English |
Scope of Delivery
1 x UVA / Lux sensor
1 x sensor holder 1 x
short extension rod with sensor holder
1 x carrying case
1 x user manual
