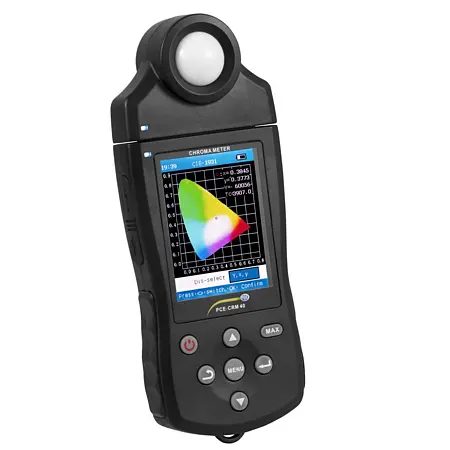

PCE-CRM 40 Chroma Meter
PCE-CRM 40 LED Spectrometer
Measurement range up to 150,000 lx / Measures correlated color temperature (CCT) / Standard chromaticity diagrams according to CIE 1931 and CIE 1976 / Displays wavelength / Displays tristimulus and RGB values / Includes a USB interface, cable, and computer software
The PCE-CRM 40 LED spectrometer or spectrophotometer can be used to determine key photometric parameters in the field of light measurement. These include the XYZ tristimulus values, the u’ and v’ color coordinates according to the CIE 1976 standard, and the xy color coordinates according to the CIE 1931 standard. In addition, supplementary color statistics are measured as absolute values and differences. The user can specify the dominant wavelength within the spectrophotometer’s sensitivity range of 360–780 nm, as well as the color density (Pe) and the correlated color temperature (CCT) in kelvins.
The spectrophotometer can also measure luminance in lux (lx) or foot-candles (fcd) and luminous flux in lumens (lm), as well as display the position of colors in the RGB color space. Thanks to its ergonomic one-handed operation, large display, memory, data interface, and software, the spectrophotometer allows for quick measurements, and the results are reproducible. Test results can be saved using the software. Its specifications make the spectrophotometer ideally suited for classifying and optimizing lighting equipment and conditions in various fields of application.
Advantages
– Lux measurement up to 150 kLux
– Tristimulus and RGB display
– Ideal for LEDs
– SD memory
– Color LCD
Specifications
| Measurement Functions | Tristimulus values: XYZ Chromatic: Ev xy, Ev u’v’ Correlated color temperature: Tc Color difference: Δ (XYZ), Δ (Evxy), Δ (Evuv), ΔE v ΔTc Δuv Chromatic coordinates: ICE1931 (x, y), ICE1976 (u, v) Dominant wavelength: λd Color stability: Pe Luminous flux: Φ, RGB parameter, color chart, maximum storage, and indicator |
| Measurement range | 0.1 … 150,000 lx 0.01 … 15,000 fcd Ev: 5 lx / 0.5 fcd or higher in one of four automatically selected ranges (lx or fcd is selectable) |
| Spectral range | 360…780 nm |
| Relative spectral sensitivity | Based on the CIE standard X(λ), y(λ), and Z(λ), with a deviation from the CIE spectral luminous efficiency V(λ) within 6% (f1′) |
| Cosine Correction | Ev: < 3% (f2) |
| Accuracy | Ev: ±5% ±1 digit of the displayed value Xy: ± 0.003 lx (at 500 lx, standard A) |
| Repeatability | Ev: ±0.5% + 1 digit (2σ) xy: ± 0.0005 (measured at 500 lx, standard A) |
| Temperature drift | Ev: ±3% ±1 digit of the displayed value xy: ±0.003 |
| Response time | 0.5 seconds (for continuous measurement) |
| Sensor type | Silicon photodiode |
| Interface | USB slot for an SD card |
| Display | 3.2″ color LCD |
| Operating Conditions | -10 … 40 °C / 14 … 10 °F <85% relative humidity |
| Storage Conditions | -20 … 40 °C / -4 … 104 °F <85% relative humidity |
| Power Source | 2200 mAh rechargeable lithium-ion battery |
| Battery life | At least 12 hours |
| Dimensions | 210 x 80 x 35 mm / 8.2 x 3.1 x 1.37 inches |
| Weight | 300 g / < 1 pound with battery |
Package Contents
1 x USB power adapter
1 USB cable
1 x mounting bracket for precise measurement
1 USB flash drive
1 x belt pouch
1 x carrying strap
1 x carrying bag
1 x user manual
