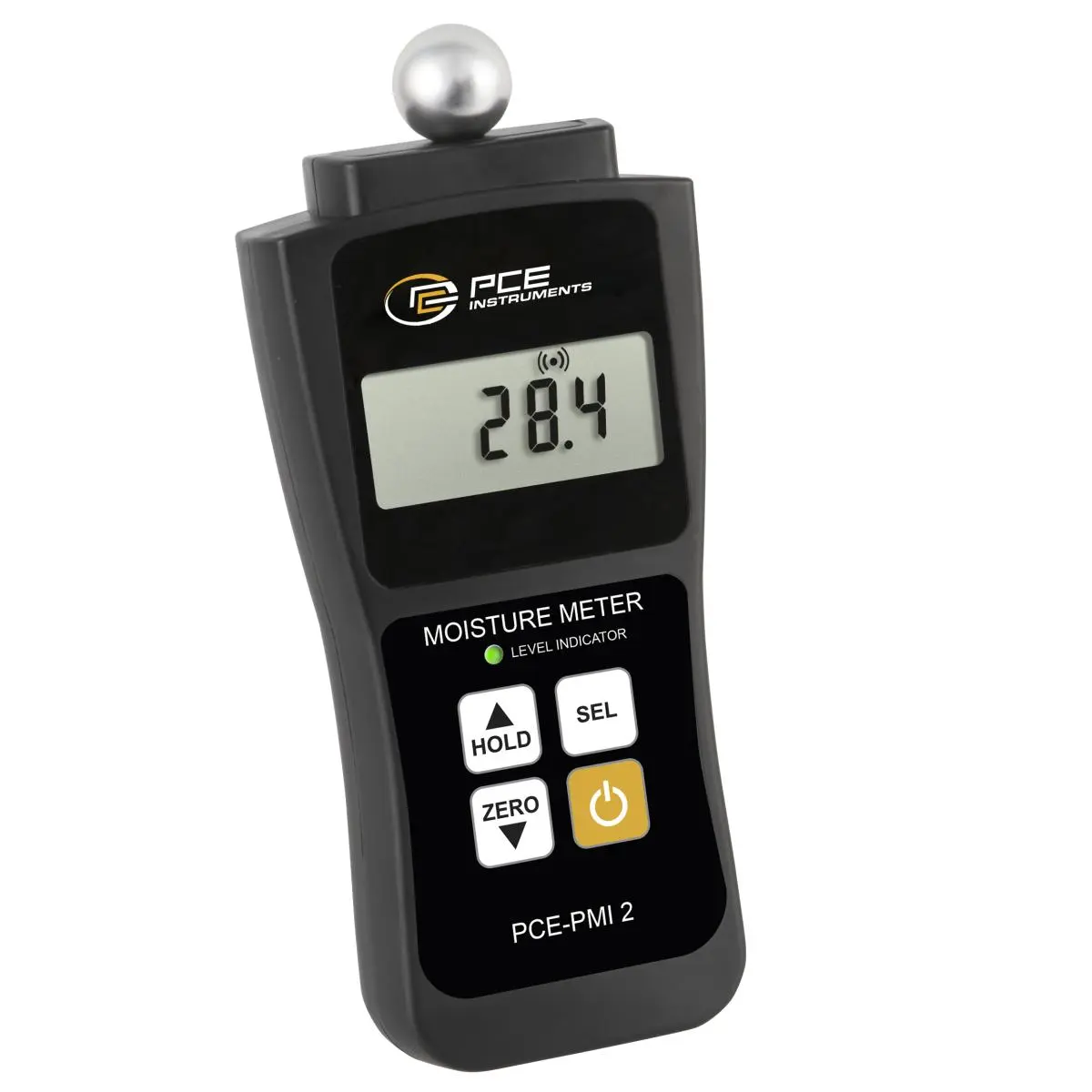

Building Moisture Meter / Optical moisture estimation alarm by LED / Humidity measurements of concrete, wood, plaster, etc. / Characteristic curves / MAX-Function / Automatic shutdown / LCD display with backlight Using the building moisture meter you can quickly perform humidity control of wood, walls, and screeds. The building moisture meter fits well in the hand, thereby ensuring a pleasant measuring process of building materials and other materials. To measure moisture of walls, wood, concrete, charcoal, etc. the building moisture meter provides characteristic curves, based on the density of the material. These are easy to change via the function keys.
Further features of the building moisture meter include an alarm function which can be fully adjusted. The LED above the control panel allows an optical moisture evaluation. It is therefore the ideal companion on construction sites, for material input checks and to reference measurements in production. With the building moisture meter the workforce is therefore optimally equipped for everyday labour.
Highlights
- Electrical resistance measuring principle
- Non-destructive, non-invasive
- Penetration depth up to 50 mm / 1.96 inches
- For concrete, cement, cork, wood, plaster, rubber and more
- Alarm function when exceeding threshold levels
- Metallic sphere or ball sensor
- Adjustable LCD backlight
- Auto-off power-saving function
- Zero / self-calibration function
- Max hold function
Technical specifications
- Relative humidity — Measuring range: 0 … 200 Digits
- Relative humidity — Resolution: 0,1 Digits
- Relative humidity — Accuracy: ±0.5 % of Rd +0.5 digits
- General technical data — Display type: LCD with backlight
- General technical data — Sensor: Metal spheroid
- Measuring method Capacitive: Measuring depth 50 mm
- Measuring method Capacitive — (Rechargeable) battery: 4 x 1,5 V AAA battery , Alkali-manganese
- Measuring method Capacitive — Capacity: 1200 mAh
- Measuring method Capacitive — Operating conditions: 0 … 50 °C , 0 … 90 % RH
- Measuring method Capacitive — Storage conditions: 0 … 50 °C , 0 … 90 % RH
- Measuring method Capacitive — Dimensions: ( L x W x H )165 x 72 x 26 mm
- Measuring method Capacitive — Weight: 123,5 g
Delivery scope
- 1 x PCE-PMI 2 Building Moisture Meter / Building Material Moisture Meter
- 1 x Battery
- 1 x Carrying case
- 1 x User manual
