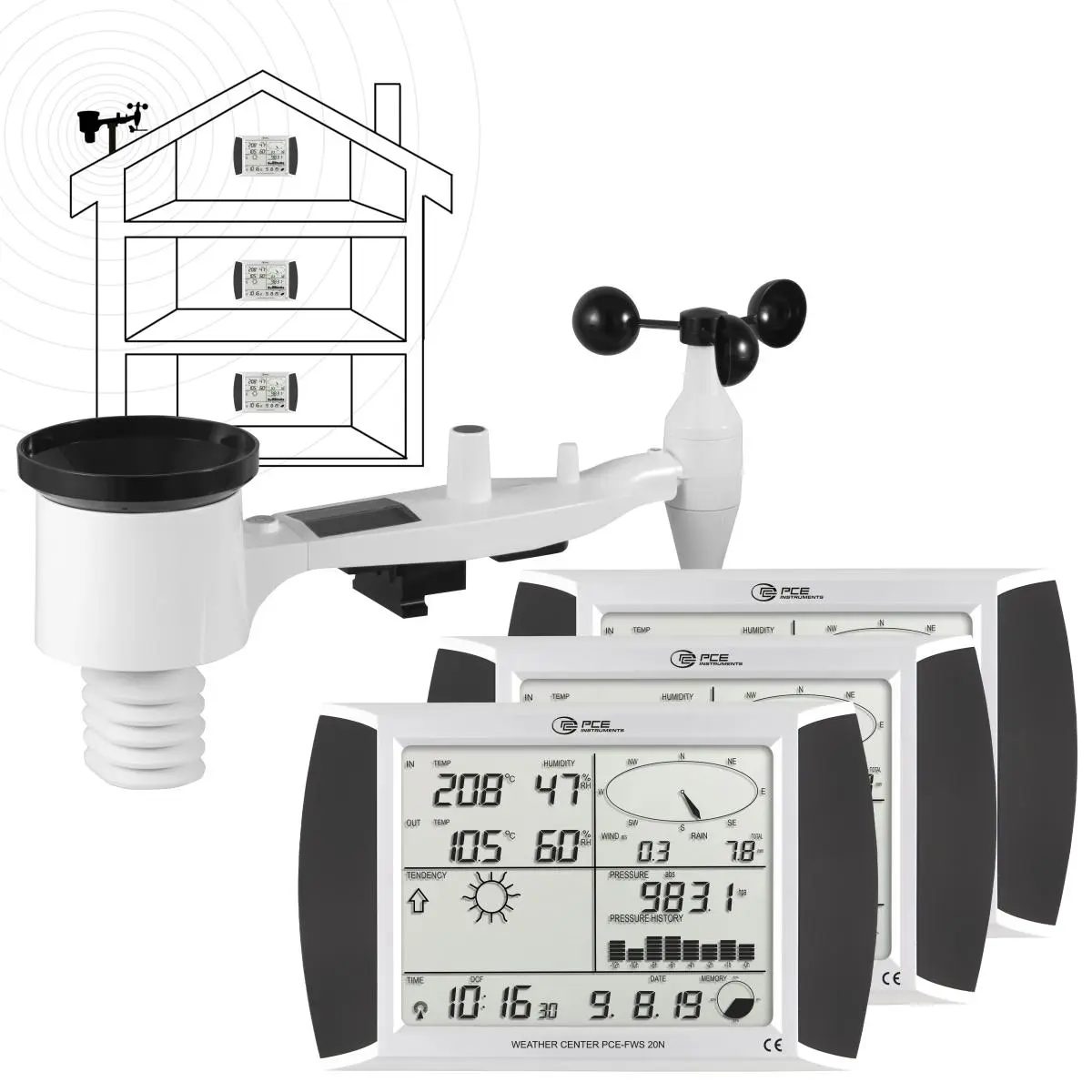

PCE-FWS 20N-2 Wind Speed Measurement Station with 3 Displays

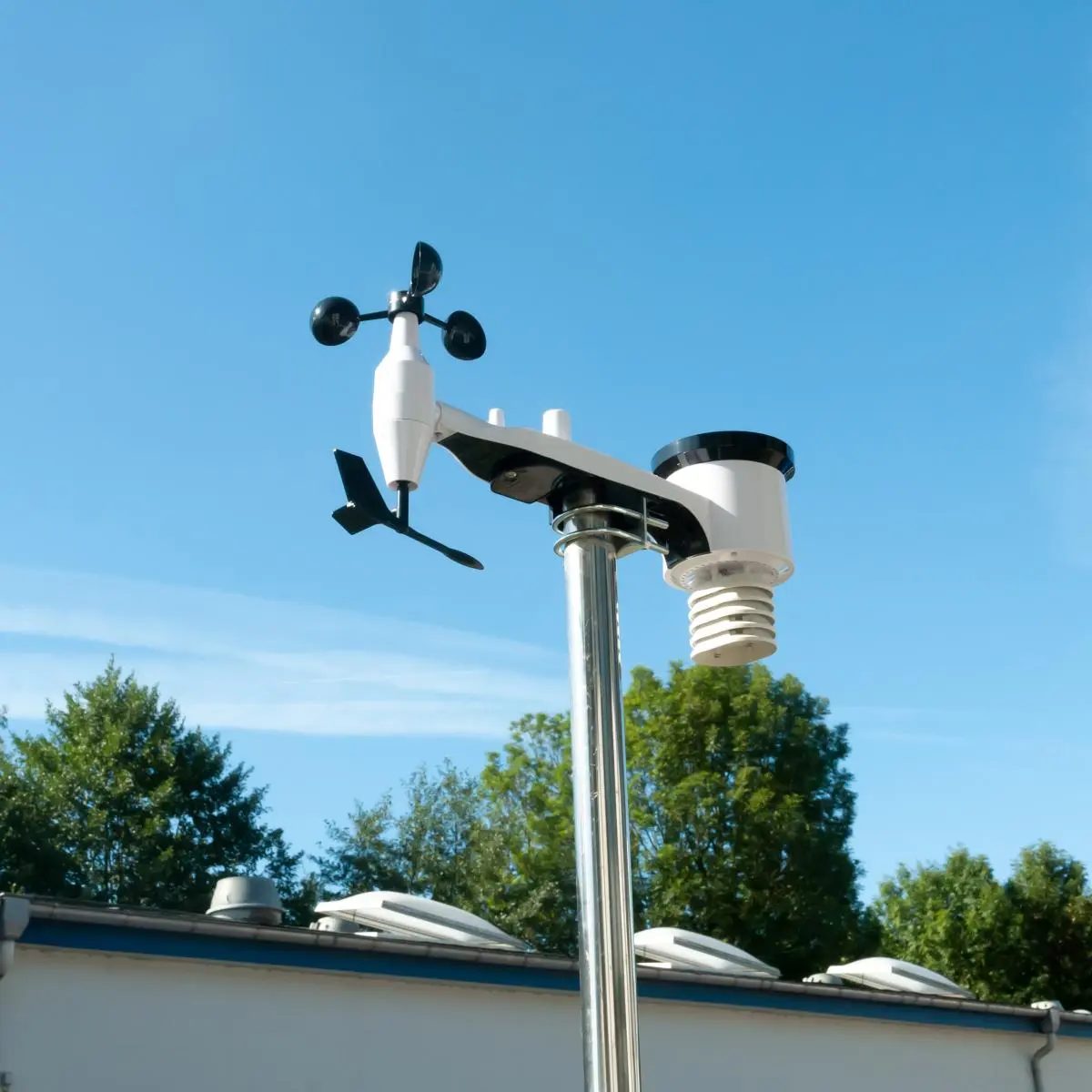

Wind speed measuring station for determining wind direction, wind speed, temperature, relative humidity, and precipitation / Configurable alarm functions / USB interface / Analysis software / Solar module and batteries to power the transmitter / Transmission frequency: 868 MHz

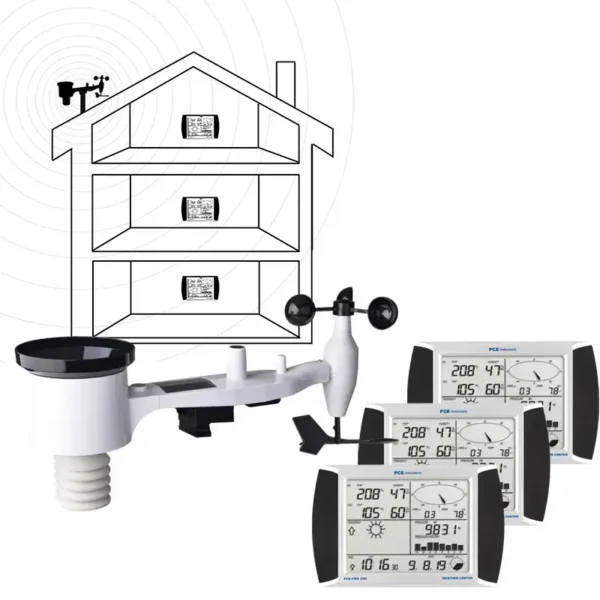

This wireless wind speed meter is a truly versatile device. Whether at home or in the office, this wireless weather station will delight users with its versatility. This weather station allows you to accurately record wind direction, wind speed, temperature, relative humidity, and precipitation. This is just a small selection of the features this weather station offers. In addition, the user can activate various alert functions on the wireless weather station (wind speed, air pressure, etc.). Based on the values displayed by the weather station, the user can, among other things, decide what to wear, whether to water the garden, and much more. Weather data is transmitted via radio signal to the main station at a distance of up to 100 meters.

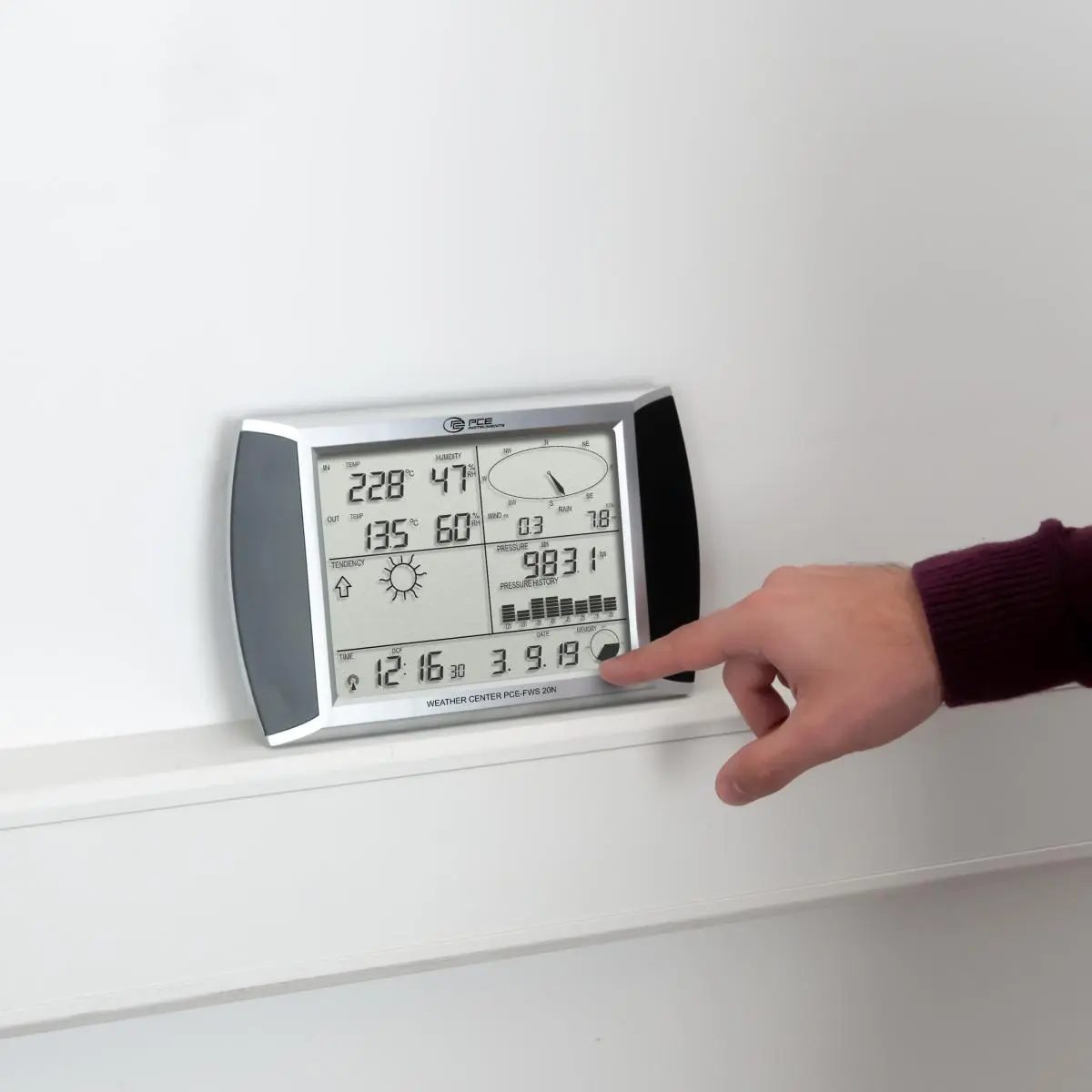

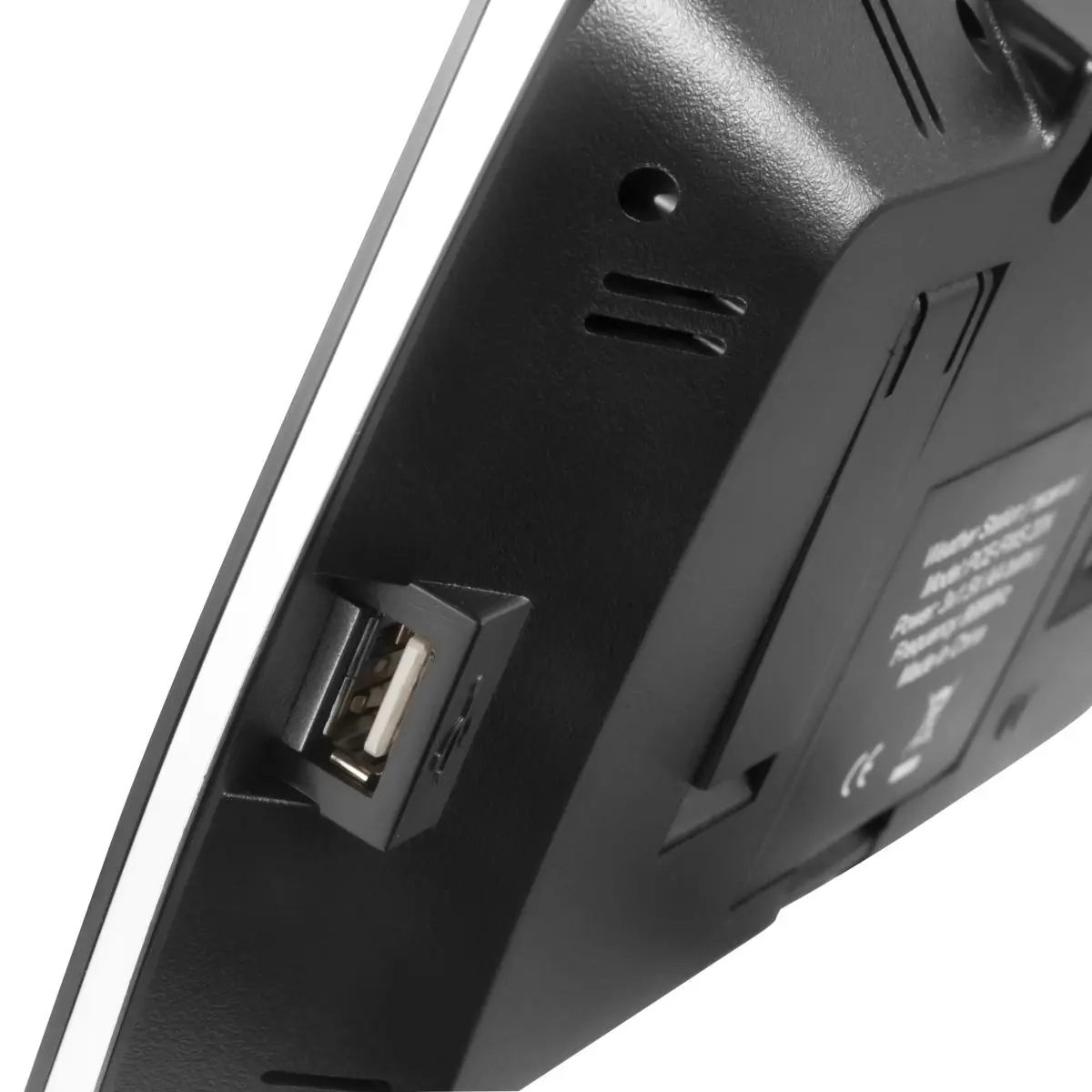

The wireless wind speed monitoring station is equipped with the latest weather analysis technology. The transmitter is powered by a solar panel and batteries. The newly developed touchscreen allows you to easily access weather data directly from the wireless weather station with a simple touch of the screen. Using the USB port and the included USB cable, weather data can be transferred directly from the wireless weather station to a computer or laptop. All of this data is time- and date-stamped so that it can be identified even after a long period of time. Weather data can be stored indefinitely here. The included analysis software then allows you to view and compare weather data over an extended period using charts and graphs. The package includes everything the user needs to set up and use this wireless weather station.
Highlights
– Software for analyzing stored data
– 7-inch touchscreen with backlighting
– Weather forecast feature
– Automatic time setting via DCF
– Adjustable alarms when the measured value is exceeded
– Wind direction and speed
– Temperature and humidity display

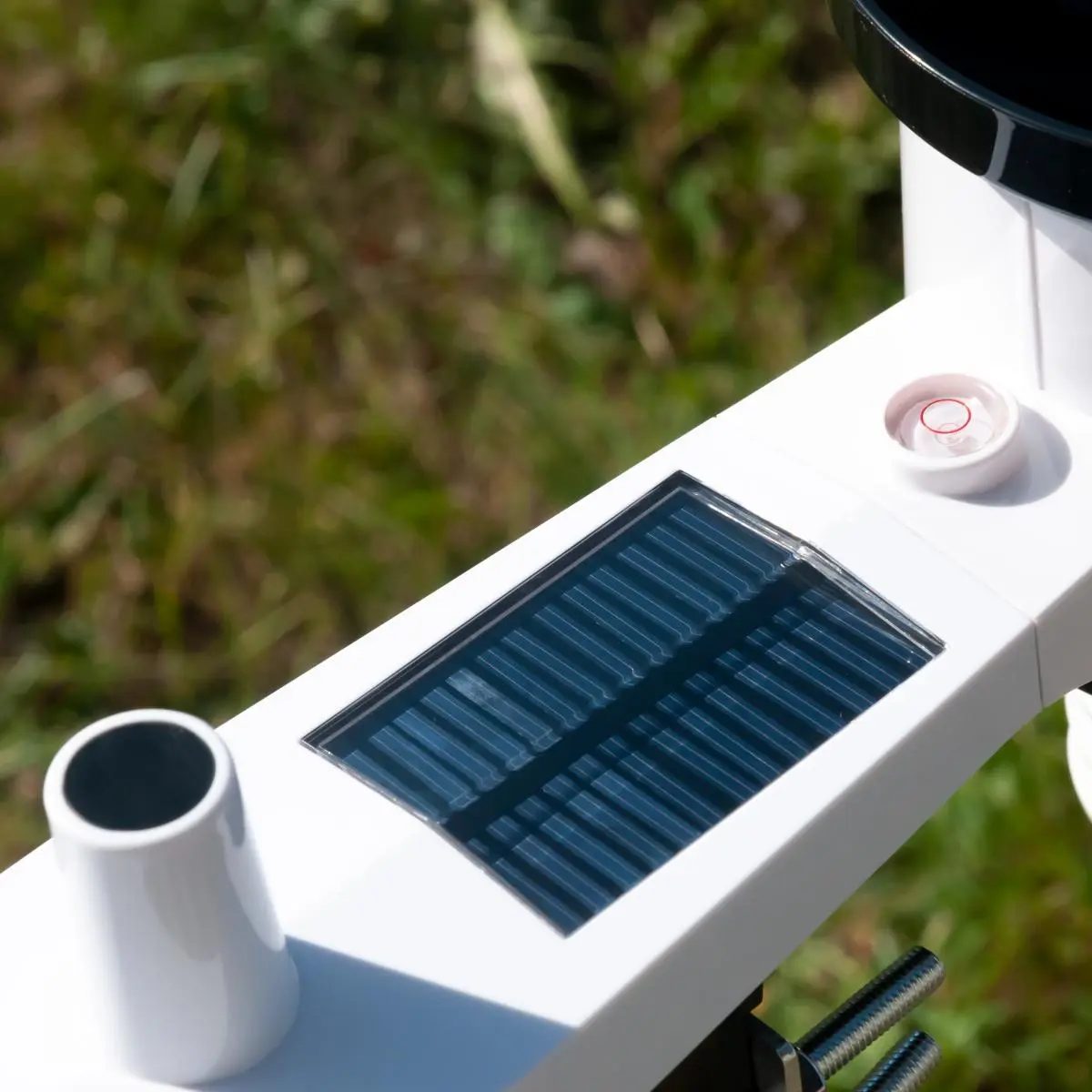

– From the outdoor unit’s solar panel to the power source
Crosswind indicator for the PCE-FWS 20N. Accessory: 48.90 €
Replacement precipitation/temperature/humidity sensor for the PCE-FWS 20N. Accessory: 50.90 €
Cross-rate for wind speed for the PCE-FWS 20N. Accessory: 30.90 €
Transmitter unit for the PCE-FWS 20N remote sensor. Accessory: 86.90 €
Secondary Screen for PCE-FWS 20N: 98.90 €
Specifications
| Inside | ||
| Measurement Function | ||
| Air Temperature | ||
| Measurement Range | Resolution | Accuracy |
| 0 … +50 °C | 0.1 | – |
| 32 … 122 °F | ||
| Measurement Function | ||
| R el. Humidity | ||
| Measurement Range | Resolution | Accuracy |
| 1 … 99% | 1% | – |
| Measurement Function | ||
| Air Pressure | ||
| Measurement Function | Resolution | Accuracy |
| 300 … 1100 hPa | 0.1 hPa | ± 3 hPa |
| 8.85 … 32.5 inches Hg | 0.01 inHg | |
| Measurement interval: 48 seconds | ||
| Alarm duration: 120 seconds | ||
| Outside | ||
| Measurement Function | ||
| Air Temperature | ||
| Measurement Range | Resolution | Accuracy |
| -40 … 60 °C | 0.1 | ±1 °C |
| -40 … 140 °F | ||
| Measurement Function | ||
| Relative Humidity | ||
| Measurement Range | Resolution | Accuracy |
| 1 … 99% | 1% | ±4% within the range of 20…80% |
| Within ±6% of the range 20…80% |
||
| Measurement Function | ||
| Precipitation | ||
| Measurement Range | Resolution | Accuracy |
| 0 … 9999 mm | 0.3 mm <at 1000 mm | ±6% |
| 1 mm > at 1000 mm | ||
| Measurement Function | ||
| Wind speed | ||
| Measurement Range | Resolution | Accuracy |
| 0 … 50 m/s | 0.1 | ±1 m/s <at 5 m/s |
| 0 … 100 miles per hour | ±10% >5 m/s | |
| Reception range: 100 m, 300 feet | ||
| Frequency: 868 MHz (Europe) | ||
| Measurement interval: 48 seconds | ||
| Protection Class: IP X3 | ||
| Other Specifications | ||
| 7-inch touchscreen | ||
| Backlit screen | ||
| Setting the Time | Manual and automatic (DCF 77) | |
| Power Supply Display | 3 x 1.5 V AA | |
| External Power Supply Module | 2 x 1.5 V AA | |
| Displaying Dimensions | 230 x 150 mm | |
| External module dimensions | 400 x 117 mm | |
| Weight display | approx. 551 g | |
| Weight of external module | approx. 545 g | |

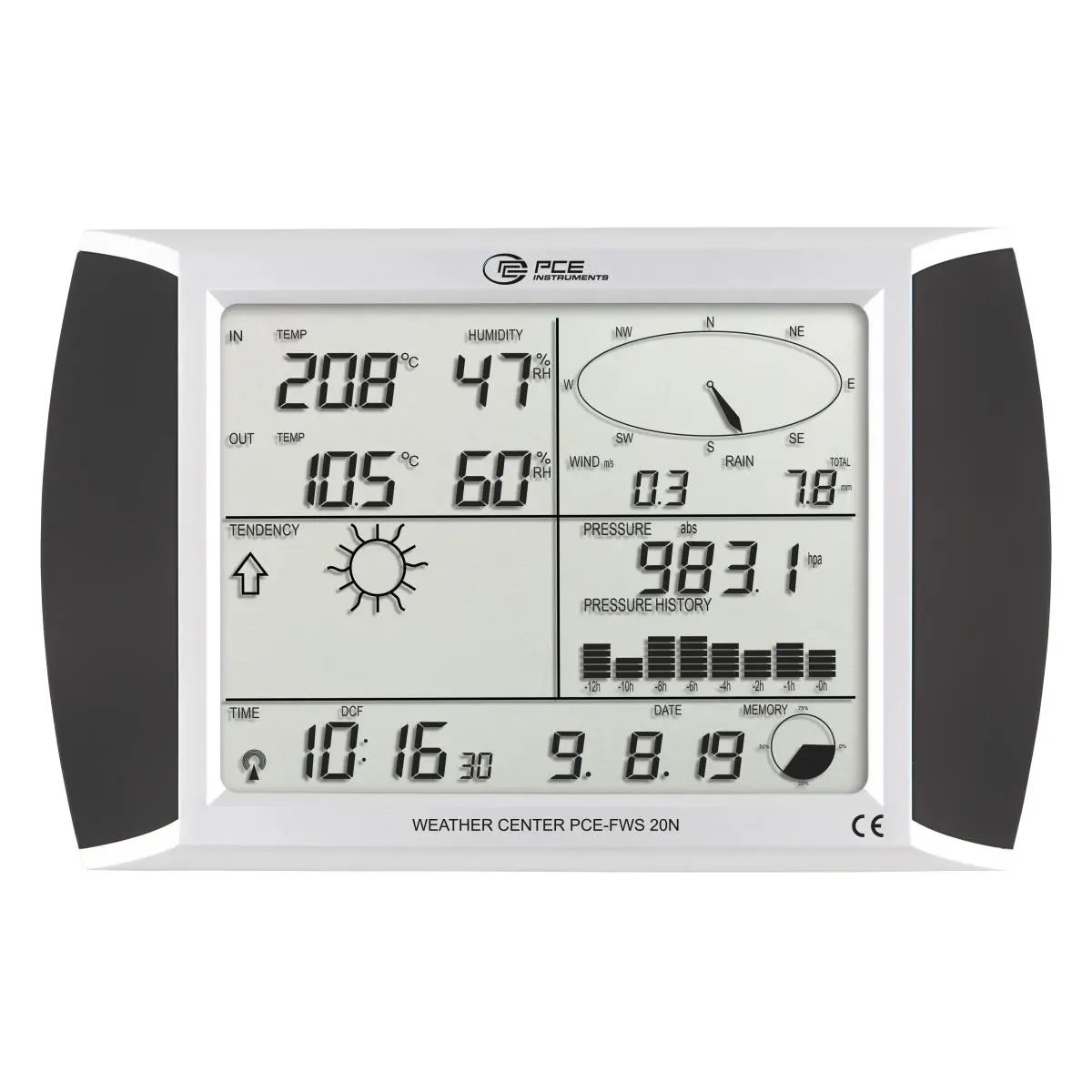

| Screen | ||
| – Indoor temperature in degrees Celsius or Fahrenheit | ||
| – Outdoor temperature in degrees Celsius or Fahrenheit | ||
| – Indoor humidity | ||
| – Outdoor humidity | ||
| – Barometric pressure gauge in inHg or hPa | ||
| – Selectable display of absolute or relative air pressure | ||
| – Precipitation in millimeters or inches | ||
| – Rain gauge: 1 hour, 24 hours, 1 week, 1 month, since the last reset | ||
| – Dew point temperature display | ||
| – Weather Report | ||
| – Displaying weather forecast trends | ||
| – Storm Warning | ||
| – Displaying weather data | ||
| – Programmable alarms for various weather conditions | ||
| – Storing the minimum and maximum values of the received weather data | ||
| – Selectable wind speed in mph, km/h, m/s, knots, or on the Beaufort scale | ||
| – Wind direction indicator | ||
| – Wind chill temperature reading (feels-like temperature) | ||
| – LED backlight | ||
| – The battery life of the weather station is approximately 1 to 2 years | ||
| – Radio clock | ||
| – 12- or 24-hour display | ||
| – Calendar | ||
| – Adjustable time zone | ||
| – Energy-saving feature | ||

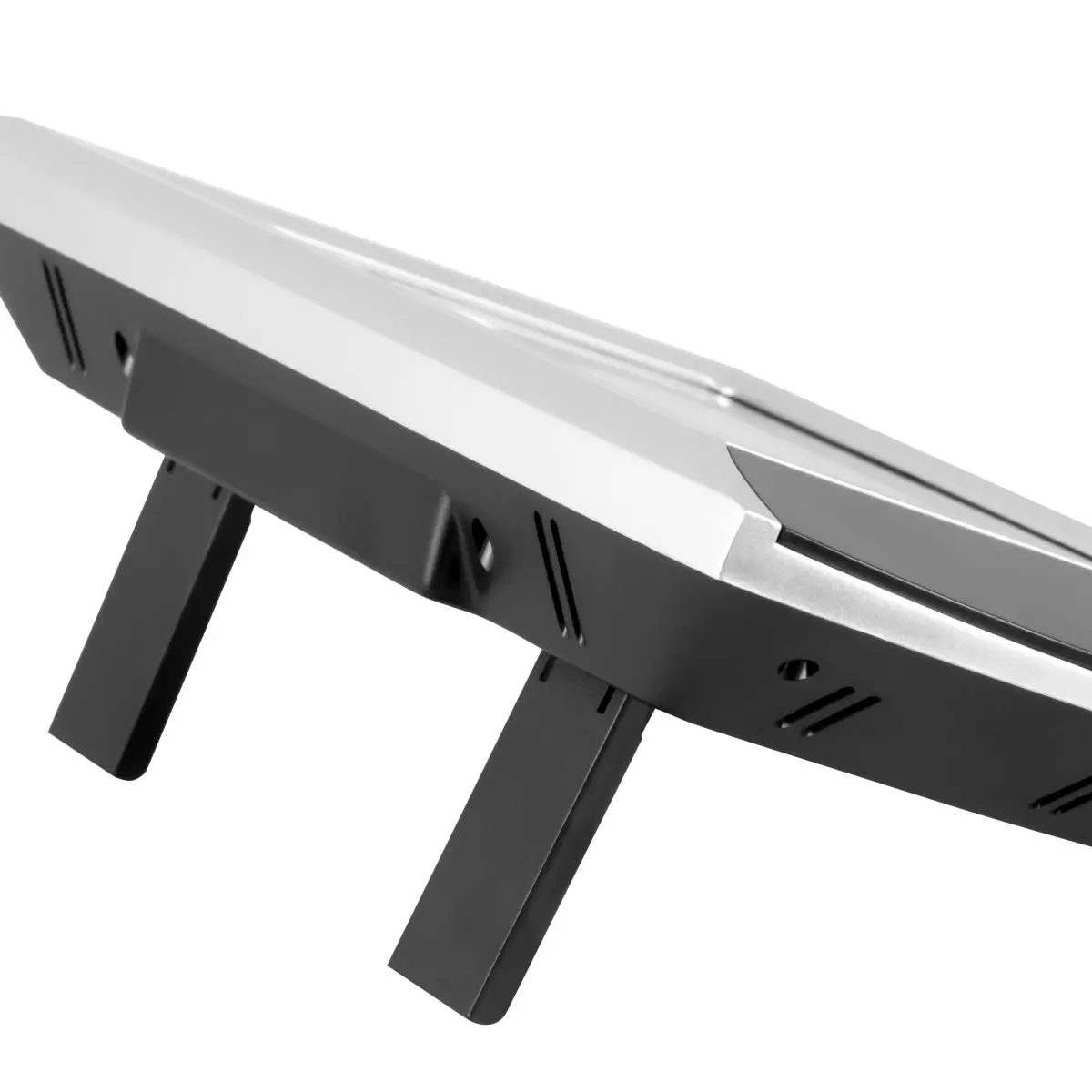

| – The weather station display can be used as a wall-mounted model or a freestanding model | ||
| – Continuous adjustment of weather data and the radio clock signal | ||
| – Helina’s memory for 4,080 complete weather records | ||
| (adjustable retention interval: 5 to 240 minutes) | ||
| Alarm functions that can be adjusted on the weather station | ||
| – Maximum indoor humidity alert | ||
| – Maximum indoor temperature for wake-up | ||
| – Humidity (max.) alarm | ||
| – Outdoor temperature (max.) alarm | ||
| – Max. wind chill alarm | ||
| – Dew point max. alarm | ||
| – Air pressure (max.) alarm | ||
| – Wind speed (max.) alarm | ||
| – Maximum wind gust speed for alarm | ||
| – 1 hour of precipitation, max. alert | ||
| – 24-hour precipitation max. alert | ||
| – Humidity inside: min. alarm | ||
| – Minimum indoor temperature for wake-up | ||
| – Humidity (minimum) alarm | ||
| – Minimum outdoor temperature for wake-up | ||
| – Wind chill minimum weather station alert | ||
| – Dew point, minimum alarm | ||
| – Air pressure (min.) alarm | ||
| Measured values recorded via the weather station (including time and date) | ||
| – 1 hour of precipitation, max. | ||
| – 24-hour precipitation total, max. | ||
| – Maximum weekly precipitation | ||
| – Maximum monthly precipitation | ||
| – Minimum humidity inside. | ||
| – Minimum internal temperature: | ||
| – Outdoor humidity at the weather station, min. | ||
| – Minimum outdoor temperature | ||
| – Wind chill temperature, min. | ||
| – Minimum dew point temperature | ||
| – Minimum air pressure at the weather station: | ||
| – Maximum indoor humidity: | ||
| – Maximum internal temperature | ||
| – Outdoor humidity at the weather station: max. | ||
| – Outdoor temperature at the weather station (max.) | ||
| – Maximum wind chill temperature | ||
| – Dew point temperature, max. | ||
| – Maximum air pressure | ||
| – Maximum wind speed | ||
| – Wind direction | ||
| – Maximum wind gust speed: | ||

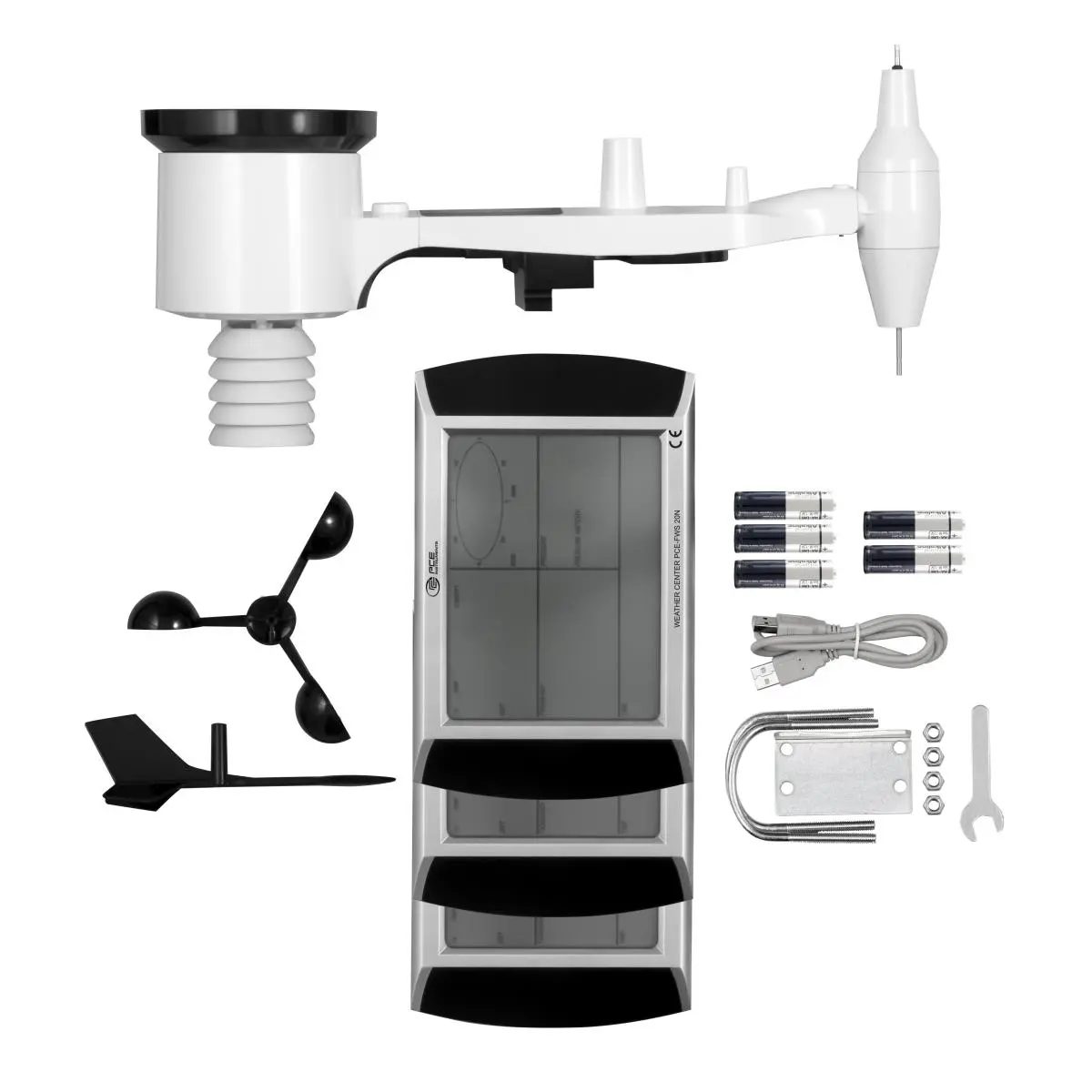

Scope of Delivery
1 x PCE-FWS 20N wind speed measuring station with 3-touchscreen display
1 x transmitter
1 x temperature sensor
1 x humidity sensor
1 x solar module
5 x 1,5 V AA batteries
1 x rain sensor
1 x wind speed sensor
1 x wind direction sensor
1 x USB connection cable (approx. 1 m / 3.2 ft)
1 x weather analysis software
1 x User Manual
