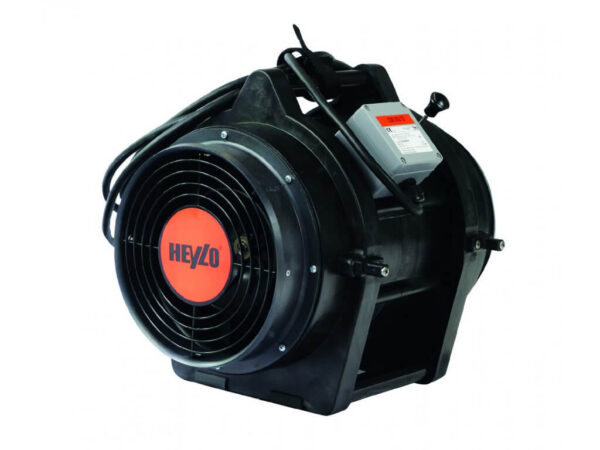

HEYLO Compact 1500 EX Axial Fan, 1195 m³/h
The ComPact 1500 EX axial fan is a transport fan designed for potentially explosive environments that quickly and safely removes hazardous gases. The housing is made of high-quality plastic that conducts static electricity to the floor, preventing static buildup and dangerous sparks. It achieves a maximum airflow of 1195 m³/h.
additional parameters
| Category | Axial fans |
|---|---|
| Weight | 8.2 kg |
| Airflow (m³/h) | 1195 |
| Pressure (Pa) | 195 |
| Power Supply (V/Hz) | 230/50 |
| Maximum power consumption (kW) | 0.25 |
| Max. power consumption (A) | 1.2 |
| Length (mm) | 330 |
| Width (mm) | 305 |
| Height (mm) | 355 |
| Weight (kg) | 8.2 |
| Noise Level (dB(A)/3 m) | 74 |
| Protection Class (IP) | 55 |
| Hose (Ø mm) | 205 |
USE
- In explosive atmospheres, fans quickly and safely remove hazardous gases
- Aeration and ventilation in logistics warehouses; remediation work in contaminated areas
- Repair and maintenance of pumping stations, tanks, and wells
- in the chemical industry and firefighting services
FEATURES
- Made of high-quality plastic, this durable cover conducts static electricity into the floor, preventing static buildup and dangerous sparks.
- Explosion Protection
- Protection Class IP 55 – dust- and water-resistant
- Low energy consumption
- Easy to transport thanks to its practical handle
- To ensure safe operation, a canister with an antistatic line is provided
Accessory – price: 1,252 euros + km
HEYLO COMPACT 1500 EX AXIAL FAN
EXPLOSION-PROOF PORTABLE FAN FOR POTENTIALLY EXPLOSIVE AREAS
The HEYLO ComPact 1500 EX is a portable industrial ventilation fan designed specifically for use in potentially explosive areas, such as when cleaning fuel, oil, and gas tanks, as well as during repair and maintenance work on gas station sumps.
This fan helps prevent the buildup of gases, vapors, and mist, and prevents the formation of explosive atmospheres and oxygen depletion. It helps safely and quickly extract hazardous gases.
The HEYLO ComPact 1500 EX ventilation fan features a lightweight and compact design, making it easy to transport from one worksite to another. It has a durable ABS-carbon plastic housing that withstands demanding on-site conditions and grounds the unit to the floor to prevent static charges and dangerous sparks. The housing and motor seal provide IP55 protection against dust and water.
When used in potentially explosive areas, the HEYLO ComPact 1500 EX must be used in conjunction with approved antistatic ventilation hoses to ensure safe operation. We offer a duct canister as an accessory, which contains 7.6 m of antistatic ducting (diameter 205 mm). The canister attaches quickly and easily to the fan and ensures safe transport and storage of the duct hose.
Please note: Use only compatible accessories.
Special features in explosion-proof areas:
- Installation requirements and various hazardous areas must be observed.
- Connect the device only to an explosion-proof outlet.
- Antistatic hoses that are grounded when necessary.
- ATEX: motor / housing: II 2G EEx de IIB T6 / II 2 G EEx d IIB.
Designed for potentially explosive areas: The HEYLO ComPact 1500 EX is an explosion-protected ventilation fan. It is designed for use with antistatic ductwork, to provide ventilation in potentially hazardous areas, such as during the cleaning of fuel, oil, and gas tanks, and during repair and maintenance work on gas station sumps.
Maximum airflow 1195 m³/h: This compact fan features a powerful motor and an efficient axial fan capable of delivering an excellent airflow rate for its size at a pressure of 195 Pa, pushing air up to 15 m away.
High-quality axial fan: This durable fan can blow air out or extract it. It withstands heavy-duty use and is ideal for challenging industrial environments.
Sturdy ABS-carbon fiber body: It conducts static electricity to the floor to prevent static buildup and dangerous sparks. It also provides excellent protection against impacts and shocks.
Antistatic duct canister available: optional accessory—the duct canister contains 7.6 m of antistatic duct (diameter 205 mm). The canister attaches quickly and easily to the HEYLO ComPact 1500 EX fan and ensures safe transport and storage of the duct hose.
Portable design: A sturdy handle and compact design make this fan extremely portable and easy to move between workstations.
