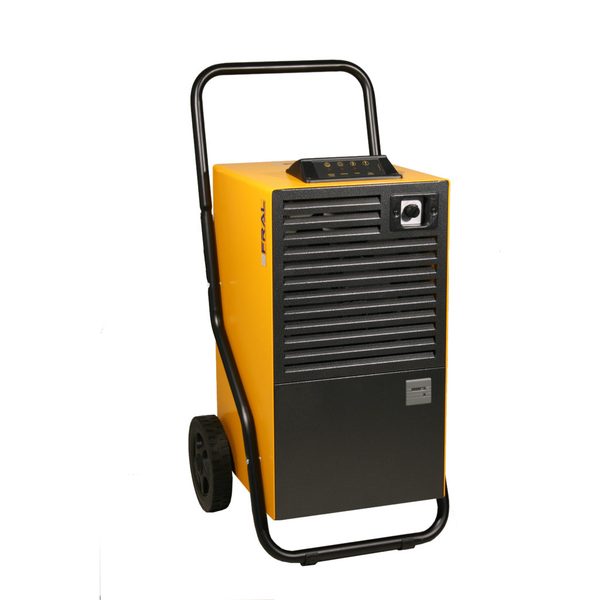

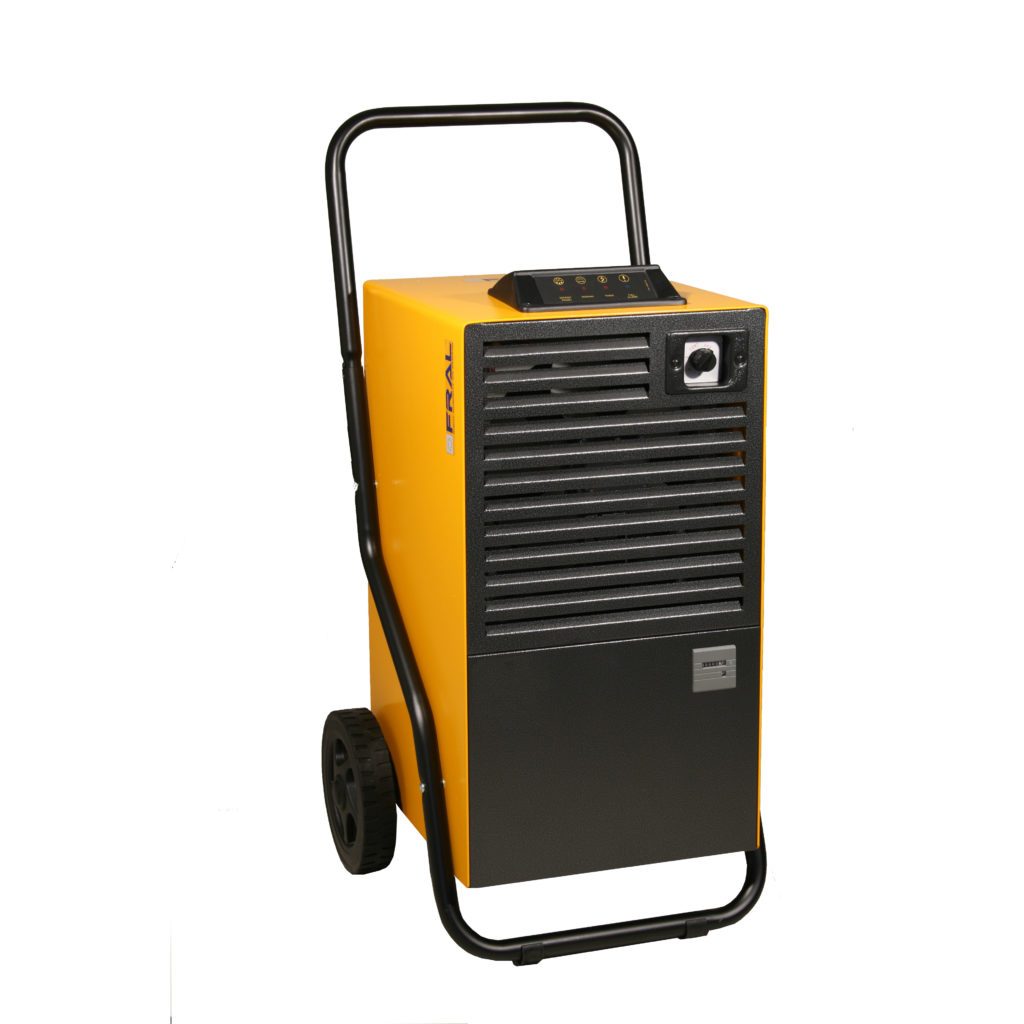

FRAL FDNP44 Professional Construction Dehumidifier (Italy) 44 l/24, 450 m³/h
Key Features of a Wet Vacuum Cleaner
- Very low energy consumption
- Hot-Gas Melting
- Environmentally Friendly Refrigerant R1234yf
- Galvanized and durable frame
- Powder-coated
- Two large wheels and sturdy tubular handles
- Hour Counter
- Automatic Hygrometer
- Evaporator coil made of aluminum and smooth tubes
- An effective and easy-to-clean filter
- Fittings for connecting continuous drain pipes
- Average rated power consumption: 540 W
- Airflow: 450 m³/h
- Directional sound pressure level 46 dB(A)
- Condensate tank capacity: 8 kg
- Weight 39 kg
RAAM
The frame and panels are hot-dip galvanized and epoxy powder-coated, ensuring high strength and durability.
COMPRESSOR
A rotary compressor mounted on vibration dampers.
REFRIGERANT
Evaporator: The evaporator coil consists of smooth aluminum tubes. These smooth tubes ensure high performance of the dehumidifier, significantly reducing energy consumption even at low relative humidity levels.
Condenser: The coil is made of copper tubes and aluminum fins; the wide spacing between the fins ensures dust resistance, a long service life, and easy maintenance of the machine.
Condenser: The coil is made of copper tubes and aluminum fins; the wide spacing between the fins ensures dust resistance, a long service life, and easy maintenance of the machine.
CONDENSATE COLLECTION TANK
The condensate collection tank installed as standard equipment is very large and easy to remove. The machine is also ready to be connected to a fixed condensate drain.
CONDENSATE LIFT PUMP
Optional on all versions, it replaces the condensate collection tank and allows condensate to be drained up to a height of 3.5 mt relative to the unit’s position. Equipped with an alarm to shut down the air dryer in the event of a pump failure. Alternatively, a condensate lift pump kit is available that can be easily installed outside the air dryer and features a failure alarm that shuts down the machine.
FAN
Axial fan, statically and dynamically balanced, durable and robust.
AIR FILTER
The air filter included as standard equipment with the unit is washable and easy to replace. High-efficiency filter.
MICROPROCESSOR
Controls the hot-gas defrost cycles, the compressor timer, and the alarm board.
CONTROL PANEL
Located at the top of the machine. Manufactured in accordance with applicable European standards.
TESTING
Tests are conducted to check the tightness of the refrigeration circuit. Electrical insulation tests and functional tests are also performed.
TECHNICAL STANDARDS
This dehumidifier complies with the essential requirements set forth in European Community Directive 2006/95/EC of December 12, 2006, on the safety of low-voltage electrical equipment; Directive 2004/108/EC of December 15, 2004, on electromagnetic compatibility; and Directive 2006/42/EC of May 17, 2006, on machinery safety. Conformity is declared with reference to the following harmonized technical standards: CEI-EN 60335-2-40, CEI-EN 55014-1, CEI-EN 55014-2. We also confirm that the product has been manufactured in accordance with the applicable RoHS Directive, i.e., 2002/95/EC, which was transposed by Legislative Decree No. 151 of July 25, 2005 (Article 5).
TECHNICAL SPECIFICATIONS
| Power Source | 230 V, 50 Hz |
| Max Power Consumption | 690W |
| Capacity | 33 l/24h |
| Maximum Absorbed Power | 3.7 A |
| Inrush Current LRA | 12 A |
| Sound pressure level | 43 dB (A) |
| Refrigerant | R290 |
| Tank capacity | 8 kg |
| Temperature | 1 to 35 °C |
| Humidity values | 30–90% |
| Airflow | 450 m³/h |
| Humidity control surface | 710 m³ |
| Drying a Surface in a Humid Environment | 400 m³ |
| Continuous discharge | YES |
| Dimensions | 48 x 80 x 50 cm |
| Weight | 39 kg |
