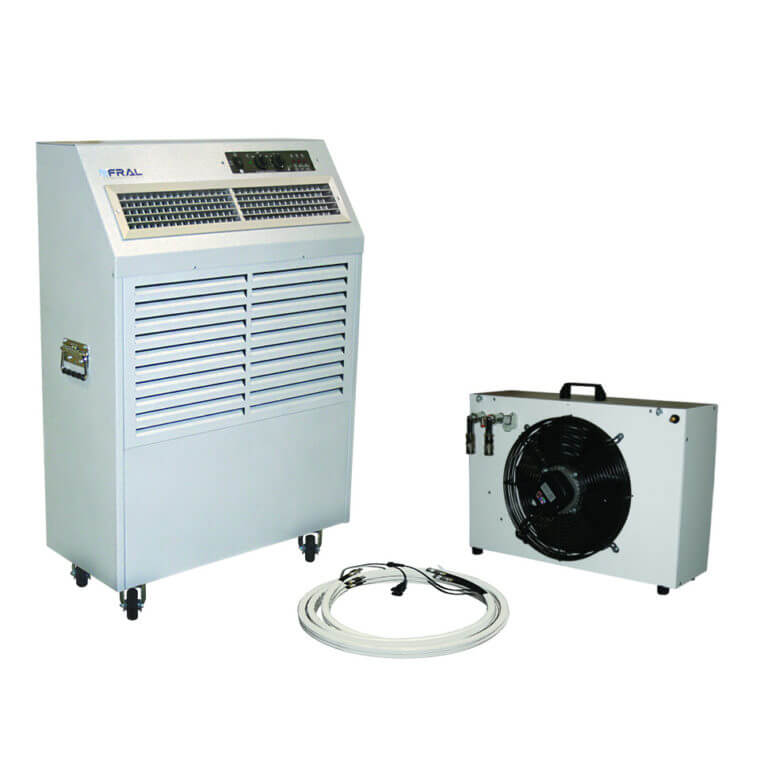

Fral FACSW92 Professional Portable Air Conditioner
The Fral FACSW90 professional portable air conditioner is a versatile and powerful solution for cooling a variety of environments. Thanks to its autonomy and ease of installation, it is the ideal choice for meeting cooling needs in a variety of situations.
The air conditioner is constructed of sturdy galvanized steel panels coated with epoxy powder paint, ensuring high resistance to atmospheric conditions and harsh environments.
The panels are designed to be removable, making it easier to inspect and maintain the internal components, thereby ensuring proper long-term operation.
ROTARY COMPRESSOR
The air conditioner is equipped with a rotary compressor mounted on anti-vibration mounts inside the two outdoor units; the compressor housing is equipped with an electric heater to optimize cooling capacity.
The refrigerant circuit consists of an evaporator and a condenser made of copper tubes with aluminum fins, which ensure efficient heat dissipation and effective air cooling.
A condensate lift pump is installed in the indoor unit; its function is to direct condensate to the outdoor unit, where it is automatically drained, thereby preventing unwanted accumulation.
The cooling capacity is supported by a centrifugal fan in the indoor unit and an axial fan in the outdoor unit, which ensures a high airflow of up to 3,200 cubic meters per hour.
EASY INSTALLATION
This air conditioner offers maximum flexibility during installation; the distance between the indoor and outdoor units can be up to thirty meters. Pipes containing glycol solution, combined with quick-connect fittings, make installation quick and easy.
CONTROL PANEL
The control panel, which complies with current European standards, is located at the top of the air conditioner, making it easy to adjust. The integrated microprocessor allows you to control hot-gas defrost cycles, set the compressor timer, and receive alerts when necessary.
AIR FILTER
The high-efficiency polyurethane air filter is easy to remove and replace, ensuring excellent indoor air quality. This filter is washable and ensures clean and continuous operation.
REDUCING CONSUMPTION AND ENVIRONMENTAL SUSTAINABILITY
Thanks to the use of state-of-the-art technologies and an optimized design, this air conditioner is able to reduce energy consumption without compromising the quality of the cooling it provides. This not only translates to financial savings for the user but also demonstrates a strong commitment to environmental sustainability.
EUROPEAN REGULATIONS
The Fral FACSW90 air conditioner complies with all essential requirements of European regulations regarding the safety of electrical products used in the areas of low voltage, electromagnetic compatibility, and machinery safety. This compliance is declared by reference to the harmonized technical standards CEI-EN 60335-2-40, CEI-EN 55014-1, and CEI-EN 55014-2. In addition, it complies with the RoHS Directive (2002/95/EC), which restricts the use of hazardous substances in the manufacture of electronic equipment.
APPLICATIONS
Large Offices
Monasteries
Data Centers
Exhibition Spaces
Hotels
Industries
Bars
Restaurants
Archives
Features
Professional portable air conditioner
Consists of an indoorand outdoor units that can be positioned remotely
Sturdy galvanized steel construction
Tested, high-quality refrigerant circuit
Condensate lift pump
Rotary compressors mounted on vibration dampers (2 pcs)
Microprocessor with alarms and control panel
Washable and easily replaceable air filter
IP21
Standard equipment
1 x indoor unit
2 x outdoor units
2 x pipes of different lengths of your choice, 5–10-20-30 meters (standard 10 m)
Technical Specifications
| Voltage | 400V |
| Cooling capacity at 25°C and 55% RH indoors, 30°C outdoors | 27,000 W |
| Cooling capacity at 25°C and 55% RH indoors, 30°C outdoors | 85,000 BTU/h |
| Absorbed power at 25°C with 55% relative humidity indoors, 30°C outdoors | 9,500 W |
| Absorbed current at 25°C, 55% RH (indoor), 30°C (outdoor) | 8.7 A |
| Fan speed Maximum speed | 3,200 m³/h |
| Fan speed Normal speed | 2,700 m³/h |
| Low-speed fan speed | 2,500 m³/h |
| Airflow of the outdoor unit | 2,700 m³/h |
| Refrigerated | R410a |
| Sound pressure level of the indoor unit at a minimum speed of 3 m | 54 dB(A) |
| Sound pressure level of the indoor unit at a distance of 3 m at an average airflow velocity | 56 dB(A) |
| Indoor unit Sound pressure level up to 3 m/s | 59 dB(A) |
| Sound pressure level of the outdoor unit at a minimum speed of 3 m | 52 dB(A) |
| Maximum distance between the indoor and outdoor units | 30 m |
| Maximum height difference between the indoor and outdoor units | 9 m |
| Internal T operating limits | 10–30°C |
| External T operating limits | 10–40°C |
| Dimensions of the indoor unit | 119 x 184 x 56 cm |
| External unit dimensions | 93 x 89.5 x 64.1 cm |
| Weight of the indoor unit | 260 kg |
| Weight of the outdoor unit | 2 x 35 kg |
