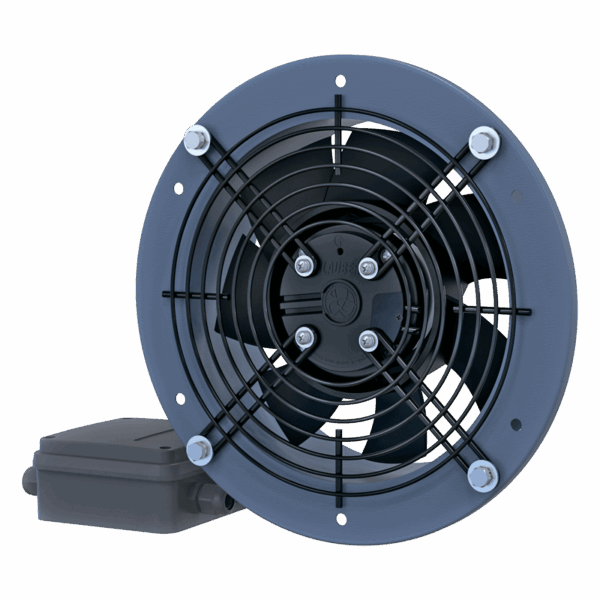

Blauberg Axis-QR EC Series Wall-Mounted Fan
- Installation of supply and exhaust ventilation systems in various rooms.
- The ideal solution for boosting large air volumes in a ventilation system with low aerodynamic drag.
- Refrigeration technologies used for cooling compressor-condenser units.
- Direct air exhaust. For positive-pressure ventilation in fire suppression systems
- Steel housing and impeller with a special atmosphere-resistant polymer coating.
- The housing is equipped with a round mounting plate and a round flange to facilitate wall mounting.
- The fan is equipped with a terminal block for connecting to the electrical grid
- Energy-efficient EC motor.
- 220–240 V single-phase at a frequency of 50 (60) Hz.
- Equipped with ball bearings to ensure a longer service life (up to 40,000 hours).
- All motors are equipped with thermal overload protection
- The fan speed is controlled by a stepless 0–10 V controller.
- Wall-mounted with a round mounting frame.
- Installation is performed in accordance with the user manual, following the direction of airflow.
- Power is supplied through an external terminal box
PRODUCT PAGE
| Code | Model | Size, mm | Frequency, Hz | Air flow,m³/h | Power, W | Current, A | RPM, min⁻¹ | Voltage, V | |
| Axis-QR EC 200 | 200 | 50/60 | 975 | 55 | 0.4 | 2780 | 1 ~ 230 | ||
| Axis-QR EC 200 max | 200 | 50/60 | 1600 | 115 | 0.85 | 2900 | 1 ~ 230 | ||
| Axis-QR EC 250 | 250 | 50/60 | 1550 | 85 | 0.61 | 2480 | 1 ~ 230 | ||
| Axis-QR EC 250 max | 250 | 50/60 | 1850 | 115 | 0.85 | 2950 | 1 ~ 230 | ||
| Axis-QR EC 300 | 300 | 50/60 | 2400 | 150 | 1.2 | 2000 | 1 ~ 230 | ||
| Axis-QR EC 300 max | 300 | 50/60 | 2750 | 210 | 1.5 | 2200 | 1 ~ 230 | ||
| Axis-QR EC 350 | 350 | 50/60 | 3500 | 200 | 1.4 | 1670 | 1 ~ 230 | ||
| Axis-QR EC 400 | 400 | 50/60 | 4000 | 170 | 1.3 | 1180 | 1 ~ 230 | ||
| Axis-QR EC 450 | 450 | 50/60 | 7400 | 380 | 1.7 | 1400 | 1 ~ 230 | ||
| Axis-QR EC 500 | 500 | 50/60 | 8500 | 700 | 3.1 | 1600 | 1 ~ 230 | ||
Accessory
| Code | Model | Control input, V | Current, A | Voltage, V | Price, EUR | ||||||
| Submerged and surface-mounted | CDT E/0-10 | 0-10 | 0.005 | 10–48 DC | 28.58 € | ||||||
