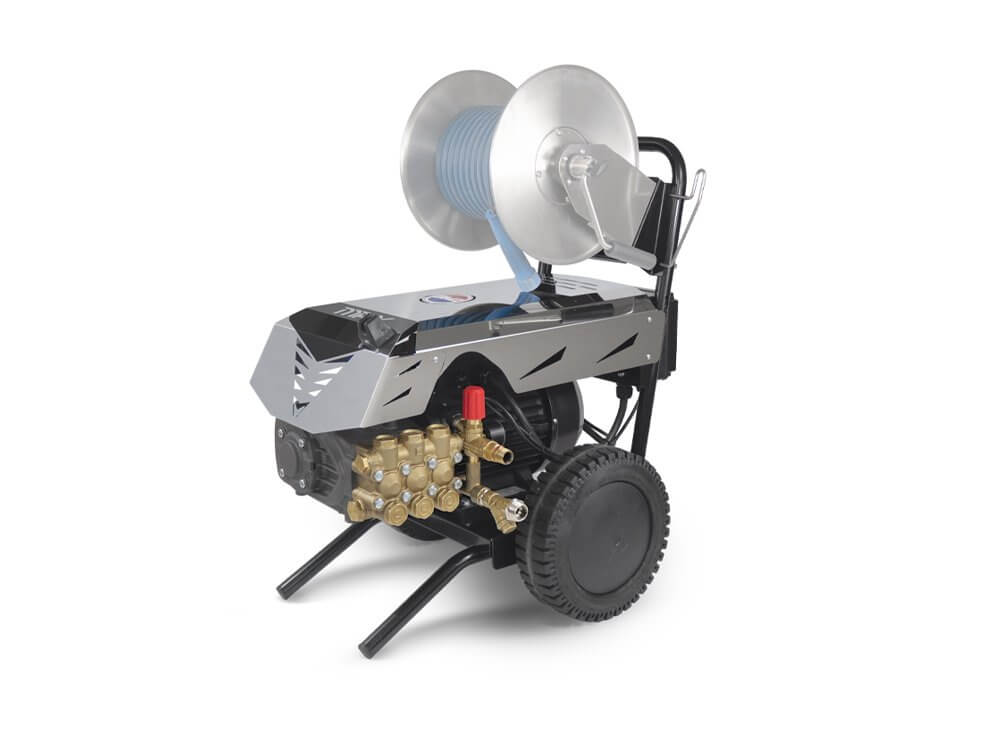

BIEMMEDUE MAX – PROFESSIONAL COLD-WATER HIGH-PRESSURE WASHER 130–200 bar, 600–1080 l/h

BIEMMEDUE MAX – PROFESSIONAL COLD-WATER HIGH-PRESSURE WASHER

• Triplex piston pump with ceramic pistons and a brass head

• Motor 1450 rpm

• High-efficiency motor with dual thermal protection

• Engine/Pump Clutch Protection with a Special Lubricant Retention System (SJ)

• Delayed Full Stop (TSD)

• Powder-coated metal frame with an AISI 430 finish

• Sturdy 260 mm wheels

Roller (optional accessory)

PRODUCT PAGE AND ACCESSORIES

Cleaning efficiency, reliability, safety, and ease of use and maintenance: these are the guiding principles that Biemmedue follows in the design and manufacture of its
line of pressure washers.

Biemmedue Max Professional Cold-Water Pressure Washer

The Biemmedue Max pressure washer is a product designed forprofessional use, featuring a high-performance motor and constructed from high-quality materials.

Piston pumps with ceramic pistons and brass heads, 1,450 rpm, with two 300 mm wheels and a third 125 mm wheel featuring a practical pedal parking system. The Biemmedue Max frame is coated withAISI 430 stainless steel.

Technical Specifications

Among the specifications of the Biemmedue Maxi, we find the motor-pump shaft clutch protection system ( SJ ), motor thermal protection, and delayed full shutdown ( TSD ). The pressure washer is three-phase, delivers a pressure of 160–180 bar, and has a power output of 7.2 kW. The flow rate is 1080–1260 L/h. The Biemmedue Max pressure washer is equipped with an IP 47 pump.

The Biemmedue Maxil has a very durable, high-quality aluminum frame and two large wheels, which make it easy for the user to move around. It also features a practical pressure gauge for measuring pressure .

Biemmedue is An Italian company that designs and manufactures hot-air generators under the Arcothermi brand, professional air dryers under the Arcodry brand, but that’s not all—it also manufactures Arcomat pressure washers, engine cleaning machines, vacuum cleaners, industrial wet and dry vacuum cleaners, and single-disc cleaning machines.

This company’s products are characterized by remarkable quality and design; the machines are durable and reliable. Biemmedue has always utilized advanced and cutting-edge design technology thanks to CAD-CAM systems and atesting laboratory equippedwith sophisticated testing and inspection equipment.

A production system 100% manufactured in Italy, which allows for monitoring of every stage of the production process and flexibility to tailor the product to customer needs. Each stage adheres to the strictest control, quality, and compliance procedures in accordance with the most rigorous international performance and safety standards , ensuring that our products are always flawless and guaranteed from every perspective.

IP47 pump

Interpump is currently the world’s largest manufacturer of high-pressure washing pumps. The level of technology employed, sophisticated automation processes, high quality standards, research and systematic testing, and design have all come together to create a product that is widely regarded as a technological masterpiece.

Features

• Piston pumps with ceramic pistons and brass heads
• 1,450 rpm motors
• High-performance engine
• Motor-Pump Shaft Connection Protection System ( SJ )
• Motor Thermal Protection
• Complete Stop Delay ( TSD )
• Painted structure with a coating of AISI 430 stainless steel
• 2 wheels, 300 mm + 1 wheel, 125 mm
• Foot-operated parking brake

Pressure vs. Current

In a pressure washer, the main emphasis is usually placed on the pressure factor (the force exerted by the water on the surface being cleaned), but the flow factor (the volume of water delivered by the pump over a period of time
) is just as important, if not more so.

Triplex Pump vs. Axial Pump

A triplex pump (a three-piston connecting rod system) is preferred for demanding and continuous applications and for professional use
, whereas the axial pump (in which the three pistons move forward via a rotating swash plate and return via spring force)
is mostly used for household purposes and is intended for light-duty use. All Biemmedue pressure washers (except for entry-level models)
are manufactured exclusively with piston pumps.

Hot Water vs. Cold Water

Hot-water pressure washers are used to remove greasy, water-insoluble, and stubborn dirt. The heat generated by the hot water helps
wash away dirt more quickly and ensures that surfaces dry fast. The water is heated in a
boiler powered by a high-performance gasoline or diesel engine, which is Biemmedue’s greatest strength thanks to the design and construction technology and know-how of its boilers and combustion chambers,
accumulated over the years as a world-leading manufacturer of heating equipment. In a cold-water pressure washer, the advantages of hot water
are replaced by the use of specific cleaning agents, which, depending on their chemical composition, can target different types of dirt. The cold-water
pressure washer is more compact and is therefore ideal for locations where space-saving design and maneuverability are required.

Electric vs. Internal Combustion Engine, Single-Phase vs. Three-Phase

The choice depends largely on the application. For this reason, Biemmedue has developed a complete range of different configurations, which are illustrated on the following pages at
.
