Arcotherm FJ Axial Fan, 4,750 to 12,050 m³/h

Arcotherm FJ Axial Fan, 4,750 to 12,050 m³/h

Categories:
Ceiling FanIndustrial/Commercial Fans and Blowers

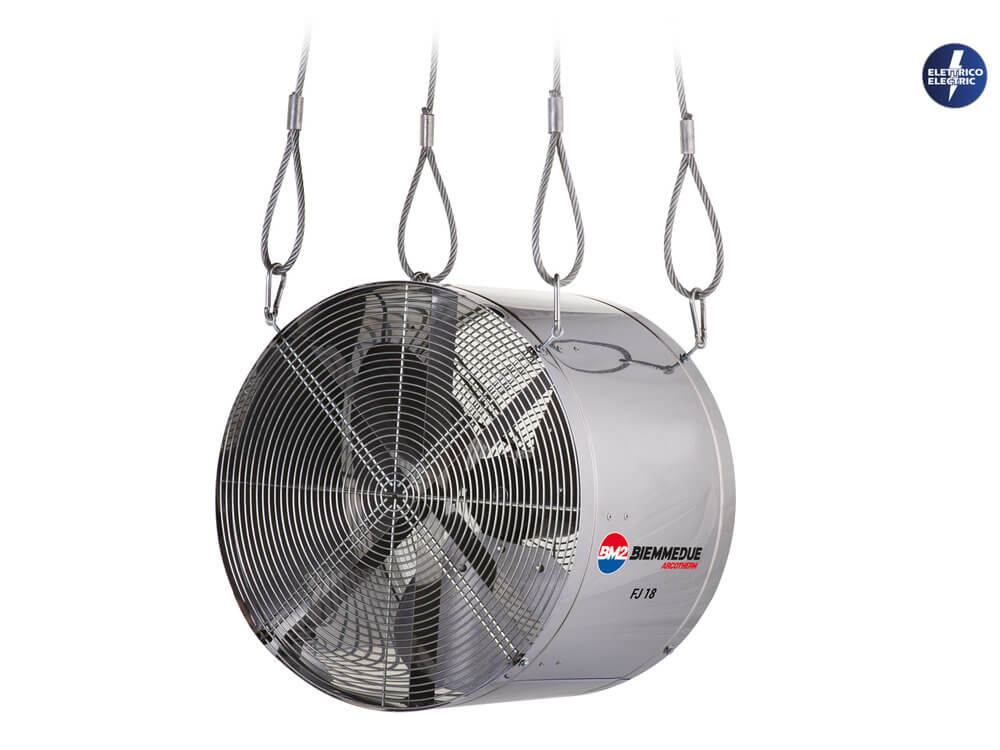

ARCOTHERM FJ AXIAL FANS FOR GREENHOUSES OR LARGE BUILDINGS

These units feature a robust design with a stainless steel housing. Each unit has an IP55 protection rating and a motor equipped with a thermal overload switch. The units are equipped with a three-blade aluminum propeller, mounting brackets, dual protection (on both the motor side and the blade side), and airflow regulators. These are powerful, high-performance units that are ideally suited for industrial environments.

  • Available for backorder (1–2 weeks)
Free shipping For orders over €250
14-Day Return Policy Worry-Free Right to Purchase
Safe Payment

ARCOTHERM FJ AXIAL FANS

EXCELLENT AIRFLOW

These units feature a robust design with a stainless steel housing. Each unit has an IP55 protection rating and a motor equipped with a thermal overload switch. The units are equipped with a three-blade aluminum propeller, mounting brackets, dual protection (on both the motor and propeller sides), and airflow regulators. These are powerful, high-performance units that are ideally suited for industrial environments.

Template FJ 18 M FJ 18 T FJ 22 M FJ 22 T FJ 25
Power Source 230V 400V 230V 400V 400V
Engine power 135/164 W 190/210 W 270/313 W 250/295 W 330/374 W
Engine RPM 940 revolutions per minute 940 revolutions per minute 940 revolutions per minute 940 revolutions per minute 940 revolutions per minute
Airflow 4,750 m³/h 4,750 m³/h 8,000 m³/h 8,000 m³/h 12,050 m³/h
Ø Fan 450 mm 450 mm 550 mm 550 mm 630 mm
Fan blades 3 3 3 3 3
Dimensions 43 x 49 x 49 cm 43 x 49 x 49 cm 44 x 57 x 57 cm 44 x 57 x 57 cm 48 x 65 x 65 cm
Weight 14 kg 14 kg 18 kg 18 kg 20.5 kg
