Aerouliqa Quantum HR 100 Local Heat Recovery Ventilation Unit

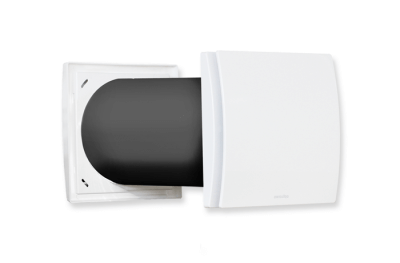

Quantum HR 100 local heat recovery unit for a single room.
Ideal for renovation or as a replacement for a broken fan.
This helps reduce humidity and water condensation problems . Air Distribution not required . Ceramic heat exchanger . Maximum Efficiency to achieve is recommended install two units with their alternating operations.
Detailed description
Recirculation unit for a single room up to 15 m²
The device supplies and removes air in a “PUSH-PULL” cycle; after 70 seconds, it reverses the direction of the airflow.
- Suitable for bedrooms and living rooms; ideal for renovations
- Recommended installation in pairs. Alternating operation, opposite and synchronized operation
- Pipe diameter: 100 mm
- Wall mounting, telescoping tube with adjustable length from 270 to 510 mm
- The device extracts contaminated air from the room within 70 seconds; then, 70 seconds later, fresh air is drawn into the room.
- As warm air is extracted from the room, the ceramic heat exchanger heats up, accumulating heat from the exhaust air. After switching the unit’s operating mode, the heat accumulated in the heat exchanger is transferred to the fresh supply air as cold outdoor air is drawn in.
- In this way, thermal energy is utilized that would otherwise be lost.
- The ideal solution for CO2 removal
- This reduces high humidity caused by the the risk.
- The device’s housing is made of high-quality ABS in white (RAL 9010).
- The EC motor with backward-curved blades ensures high performance
- The device is designed for continuous operation
- Dust Filter
- High-efficiency ceramic heat exchanger _
|
|
 |
 |
-
The CTRL-SI or CTRL-SP controller must be purchased with the device.
Technical Specifications
- For walls with a thickness of 270 to 510 mm _
- Pipe diameter: 100 mm
- Voltage 230V
- Air flow rate: 10 / 15 / 25 m³/h
- Power consumption: 1.2 / 1.7 / 2.6 W
- EC Motor
- Weight: 2 kg
- Ceramic heat exchanger with an efficiency of up to 82% _
- Noise level: 10 / 15 / 29 dB ( A ) at a distance of 3 m from the device
- Helps reduce problems with moisture and water condensation
- Freecoling feature,
-
The unit comes with a high-quality external plastic grille that is UV-resistant, made of ABS, and white (RAL 9010).
- Insect Net
 |
 |
-
You must purchase a CTRL-S-I or CTRL-S-P controller for the device.
