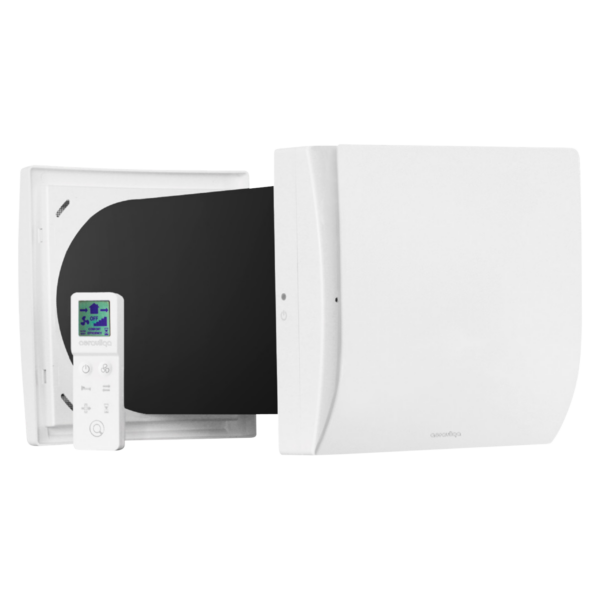

AERAULIQA ORION Local Ventilation Unit – 2 versions: 100 mm or 150 mm
The Aerauliqa ORION series heat recovery unit includes all the features of the Aerauliqa QUANTUM NEXT, including a simple remote control, easy maintenance, and a more energy-efficient brushless motor used in the system. It is distinguished by one more feature—a built-in Modbus communication module. Thanks to this, up to eight heat recovery units can be combined with the CTRL-HO control module, resulting in a decentralized ventilation system capable of ventilating the entire home with simplified control.
Key features:
- One unit provides air exchange rates of 20 to 60 m³/h for rooms ranging from 22 to 50 m² (Orion: 100 and 150, respectively);
- A modern ceramic heat accumulator with a regeneration (rotary) efficiency of up to 91%;
- Meets the criteria for a European passive house;
- Reversible, energy-efficient EC fan with low power consumption of 2–6 W;
- Very quiet operation (sound pressure at 3 m: 10–29 dBA); noise-reducing elements incorporated into the design (maximum sound power: 40 dBA);
- Easy installation and maintenance;
- Can be used for long periods of continuous operation;
- No condensation forms during operation;
- Control via a wireless remote control or the CTRL-HO control module, available for separate purchase
- Manufacturer: Italy
- Warranty – 2 years.
Decentralized mechanical ventilation unit with alternating airflow and a heat recovery core (“push-pull” type): extremely low energy consumption.
Designed for installation in a single room, such as a living room or bedroom: to ensure better airflow. Typically, two units are balanced in parallel operation with opposite and synchronized airflow directions.
SPECIFICATIONS
The indoor unit and wall bracket are made of high-quality ABS, featuring a durable, impact-resistant, and robust
construction. Finished in white RAL 9010 and UV-resistant. Touch-sensitive infrared remote control technology and a wall mount are included as standard. Made of ABS, RAL 9010. Uniquely designed wing-shaped blades, offering improved aerodynamics.
Features: low noise level and increased efficiency. High-efficiency reversible EC motor with integrated thermal protection, installed in a sealed environment with high-quality ball bearings.
Designed for continuous operation. Regenerative heat exchanger with a ceramic core featuring high thermal efficiency.
Washable dust filters on the heat exchanger side. 100% made from recycled ABS telescopic tubing, adjustable to wall thickness. Exterior grille with insect screen and water drip protection.
FEATURES AND BENEFITS
IPX4 protection rating.
Aesthetic flat front panel for modern interior design, easily removable, cleanable without tools.
Multifunctional remote control with an LCD screen to display the unit’s status.
Backup touch-sensitive button on the side of the ventilation unit.
Automatic inversion time management (comfort mode) to optimize acoustic and thermal comfort.
Integrated multicolor LED to indicate the unit’s status—visual feedback.
Smart humidity control. Free cooling: exhaust or intake only
Simplified synchronization of multiple units
(up to 10): thanks to a special communication protocol that automatically synchronizes the units when they
are connected to each other.
Simple and safe maintenance thanks to a magnetic connection/disconnection system that allows for quick opening of the ventilation unit.
Automatic anti-freeze protection to prevent ice buildup on the heat exchanger.
No water drainage required.
Seamless electrical wiring (L and N only).
Fully recyclable plastic components, environmentally friendly.
Double insulation: no ground connection required.
Tested according to the latest standards: the units have been tested by the TÜV Rheinland-accredited Aerauliqa laboratory, which means
accurate and up-to-date information on electrical safety, performance, and noise levels, and you can be confident in the results. Designed for
and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the Electromagnetic Compatibility Directive (EMC).
MODBUS CONNECTION
The units are equipped with a Modbus communication module, which enables integration with the CTRL-HO centralized control panel, thereby creating a decentralized device system (up to 8 devices)
As an optional extra
