TFV 900 Centrifugal Fan
The optimal solution for all applications involving air transport over long distances.
Proper ventilation is not only important for a pleasant working environment, but is also essential in many areas for occupational safety reasons and in accordance with official regulations.
Ventilating rooms removes harmful substances such as paint and varnish fumes, welding fumes, dust particles, carbon monoxide, nitrogen oxides, carbon dioxide, and water vapor.
The TFV 900 high-pressure centrifugal fan is ideally suited for such tasks, as it delivers up to 33,600 m³/h of air even over long distances with high back pressure and remains extremely stable in harsh operating environments.
Since this fan draws in air axially and expels it radially, it is not only effective at handling heavily contaminated air with high dust content, but also ensures high and stable performance curves.
In addition to the standard version, the TFV 900 fan is also available as a rental version.
Here are a few of the practical advantages of the TFV 900, in brief:
- An exceptionally sturdy device with a high load capacity
- Splash-proof version (IP55)
- Can also be used in very dusty rooms
- The fan motor is located outside the main airflow
- Can be connected to both intake and exhaust ducts
- stable regions of the characteristic curve and consistently high pressure
Here is an overview of the TFV 900’s technical specifications:
- Free-flow air volume: 33,600 m³/h
- Air discharge velocity: 34 m/s (122.4 km/h)
- Fan speeds: 1
- maximum air pressure*: 1900 Pa
- Maximum transmission medium temperature: 80 °C
- Environmental conditions: -20 °C to 40 °C
- Line voltage: 400 V / 50 Hz (36 A)
- Power connection: CEE 32 A
- Power consumption: 18.5 kW
- Inlet connection: accessories (ø 630 mm)
- Discharge nozzle: series (ø 630 mm)
- Sound level (at a distance of 1.5 m): 82 dB(A)
- Body: steel, powder-coated, 2K paint
- Dimensions (including frame): 1950 x 1900 x 2200 mm
- Weight: 450 kg
*At 20 °C, 500 m above sea level (NN)

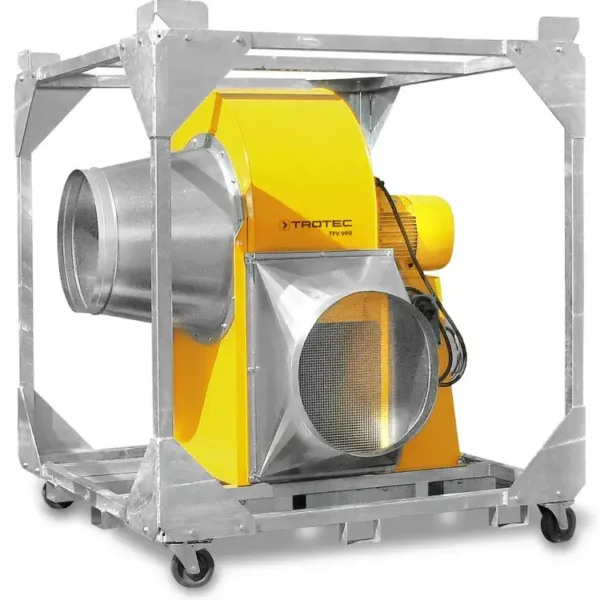

The photo shows the TFV 900 mounted on a frame. It is not included in the package and is available upon request!
Price of the frame – 3,332 euros, including VAT
| Air volume | ||
|---|---|---|
| Max – free outlet flow [m³/h] | 33,600 | |
| air volume at atmospheric pressure | ||
| m³/h | 25,000 | |
| Pa | 1900 | |
| airflow | ||
| while blowing out | ||
| indentation | – | |
| air discharge velocity | ||
| Ms. | 34 | |
| km/h | 122.4 | |
| Fan | ||
| fan speeds | 1 | |
| air pressure | ||
| Maximum Level [Pa] | 2150 | |
| conveyor temperature | ||
| maximum [°C] | 80 | |
| Environmental Conditions | ||
| Temperature range min [°C] | -20 | |
| Maximum temperature range [°C] | 40 | |
| security feature | ||
| IP Protection Class | 55 | |
| electrical values | ||
| Power connection | 400 V/50 Hz | |
| Power consumption [kW] | 18.5 | |
| Recommended protection [A / motor protection switch] | 32 | |
| Rated Current [A] | 39 | |
| electrical connection | ||
| plug plug | CEE 63 A | |
| cable length [m] | – | |
| hose connection | ||
| Inlet manifold [mm] | 630 | |
| outlet nozzle [mm] | 630 | |
| sound levels | ||
| Distance 1 m [dB(A)] | 82 | |
| Distance 3 m [dB(A)] | 76 | |
| explosion protection | ||
| Zone | – | |
| protection class | – | |
| dimension | ||
| Length (without packaging) [mm] | 1680 | |
| Width (without packaging) [mm] | 1810 | |
| Height (without packaging) [mm] | 1680 | |
| Weight | ||
| (without packaging) [kg] | 450 | |
| EQUIPMENT, FEATURES, AND FUNCTIONS | ||
|---|---|---|
| residential design | ||
| Steel, powder-coated | ||
| plastic | ||
| metal | ||
| mobility | ||
| crane | ||
| forklift | ||
