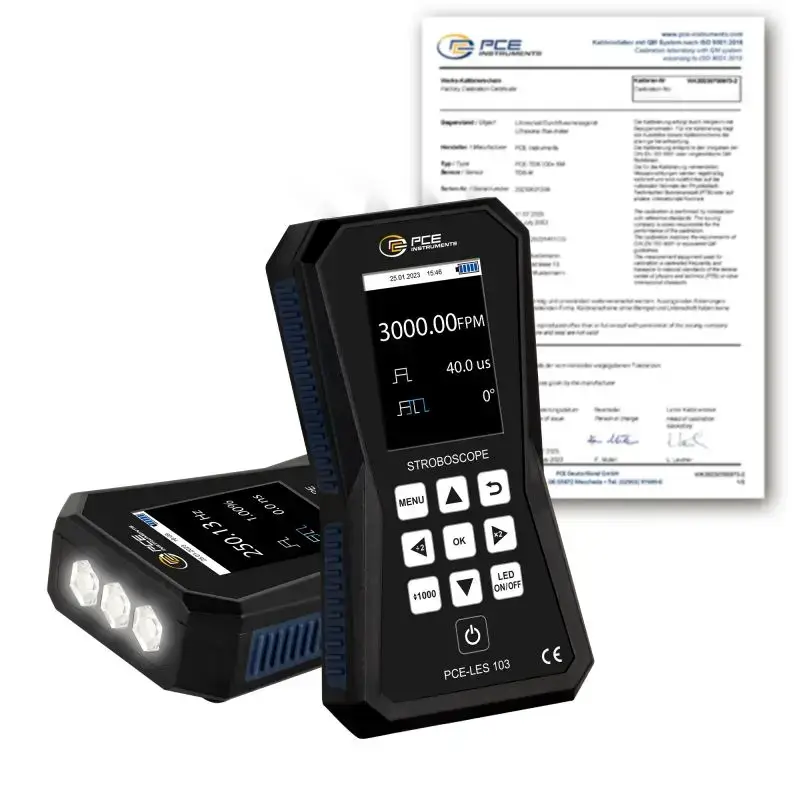

PCE-LES 103-ICA Stroboscope with ISO Calibration Certificate
Motion analysis of rotating machinery is quick and easy with our stroboscope. The strobe is equipped with 3 high-power LEDs, which together produce a light intensity of 11,730 lux at a frequency of 20 cm / 1,000 Hz. A diagram showing the corresponding light intensity at various distances. The strobe allows for precise adjustment of the flash frequency in both FPM and Hz. The strobe is pocket-sized, compact, and, thanks to its battery, operates independently of the power grid.
The strobe is controlled intuitively using 10 buttons, which allow for quick adjustments. Phase shift enables a variable shift in the viewing angle. Pulse width can be used to adjust the duration of the flash and, consequently, its intensity. In the settings menu, you can adjust both the screen brightness and set the screen to turn off after a certain period of inactivity, which extends battery life. The Strobox comes with a USB-C charging cable in the carrying case.
A stroboscope is an indispensable tool for monitoring and inspecting production facilities, such as in the printing and textile industries. It is also used for general maintenance and inspection work across all industrial sectors. A stroboscope also allows for non-contact measurement of speed and vibration: when the stroboscope’s flash frequency matches the frequency of motion, the object being measured appears to be stationary.
– Pocket size
| frequency | |
| Measurement Range | +60 FPM … 9,999.99 FPM |
| resolution | 0.01 FPM |
| accuracy | 0.003% of the setting or ± 1 LSD |
| frequency | |
| Measurement range | +10,000 FPM … +300,000 FPM |
| resolution | 0.1 FPM |
| accuracy | 0.003% of the setting or ± 1 LSD |
| frequency | |
| Measurement range | +1 Hz … +5000 Hz |
| resolution | 0.01 Hz |
| accuracy | 0.003% of the setting or ± 1 LSD |
| General Technical Specifications | |
| Screen Type | TFT color screen |
| Screen size | 2.8 inches |
| Working hours | 4.5 hours |
| Operating Hours Additional Information | at a flicker frequency of 100 Hz, 1%, screen brightness 70% |
| Adjustable Auto-Off | 2 … 10 min. |
| You can turn off the automatic shut-off feature | Yes |
| Light Intensity | 11,730 lux @ 20 cm @ 1,000 Hz 1% 6,160 lux @ 30 cm @ 1,000 Hz 1% 2,650 lux @ 50 cm @ 1,000 Hz 1% |
| Light color | 6500 K |
| Phase shift | -360 … 360° |
| Pulse width | 0.01 … 1% of the pulse duration Resolution: 0.01% 0.01° … 3.60° 360° |
| Menu Language | German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese |
| Protection Class (device) | IP52 |
| Power Supply | 5V DC, 2A |
| Weight | 284 g |
| Dimensions (W x L x H) | 165 x 90 x 35 mm |
| Operating Conditions | -20…60 °C, 35…85% relative humidity |
| Storage Conditions | -20…60 °C, 35…85% relative humidity |
| Languages of the instructions | German, English |
| Batteries and Rechargeable Batteries | |
| Type | Lithium-ion battery |
| Lithium Information | Lithium in the product (built-in or enclosed) |
| capacity | 2200 mAh |
| Voltage | 7.4 V |
| system | Secondary: rechargeable battery |
