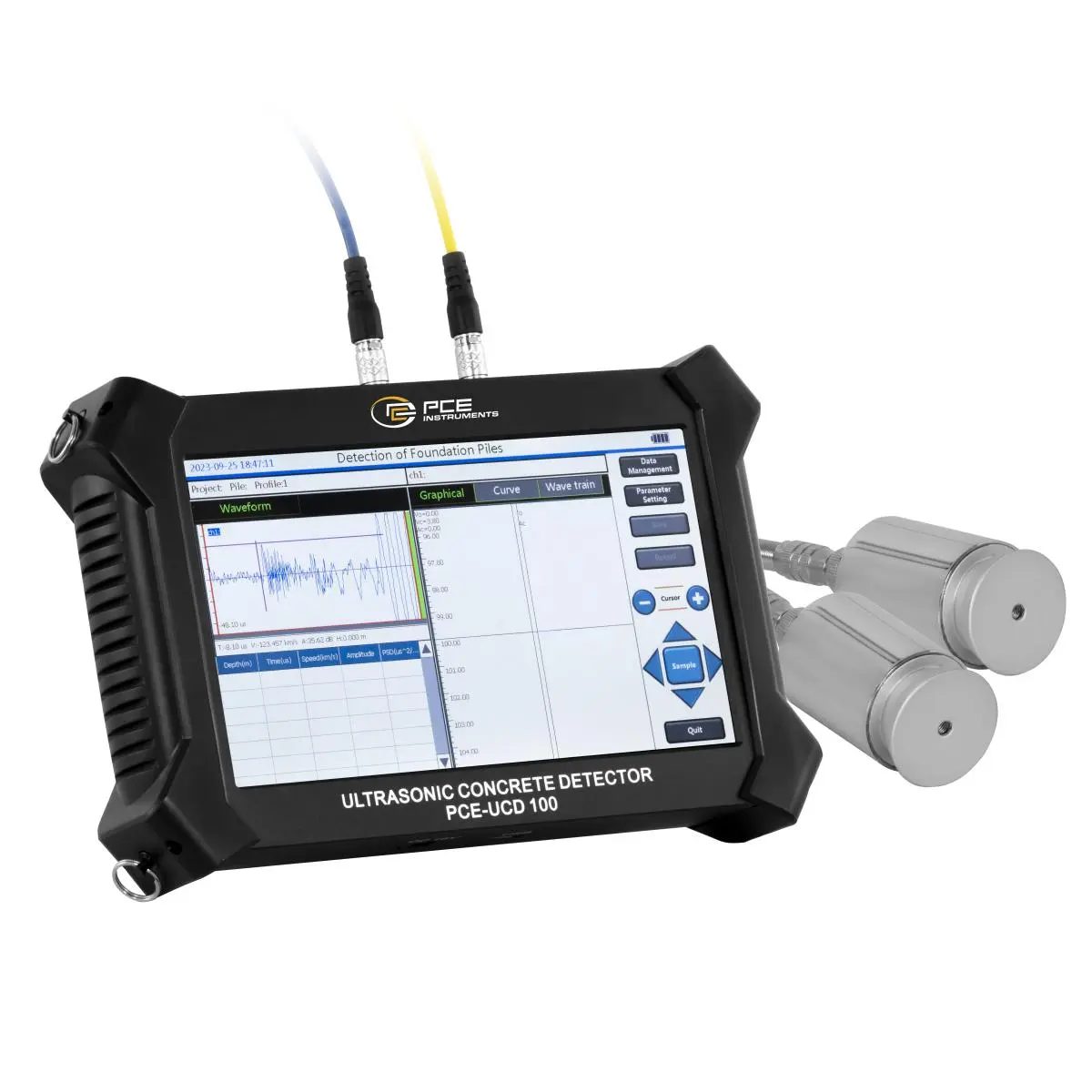

Ultrasonic Tester / Ultrasonic Testing for quality assessment / Measurement with ultrasonic sensors / Large touch display / 8 GB internal storage with data management / Includes carrying strap and case
The ultrasonic tester / ultrasonic testing sets a new standard for the quality control of concrete structures. With a wide range of measurement parameters and state-of-the-art technology, this ultrasonic tester / ultrasonic testing enables accurate assessment of concrete piles, concrete beams, and other building components. This innovative ultrasonic tester / ultrasonic testing provides not only reliable concrete strength measurements but also detailed error detection, including the size and depth of voids and cracks. The included camera even allows for precise measurement of crack widths.

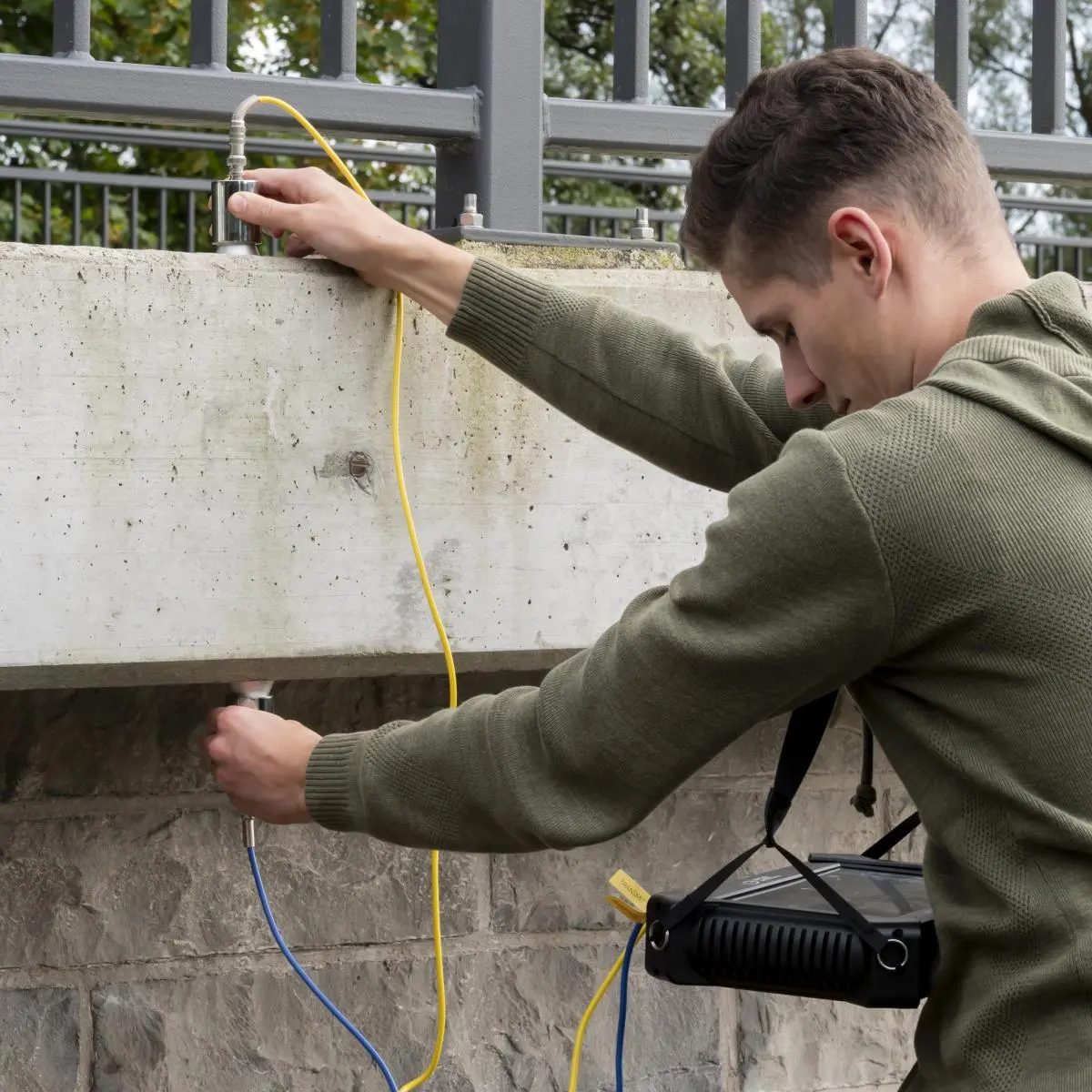

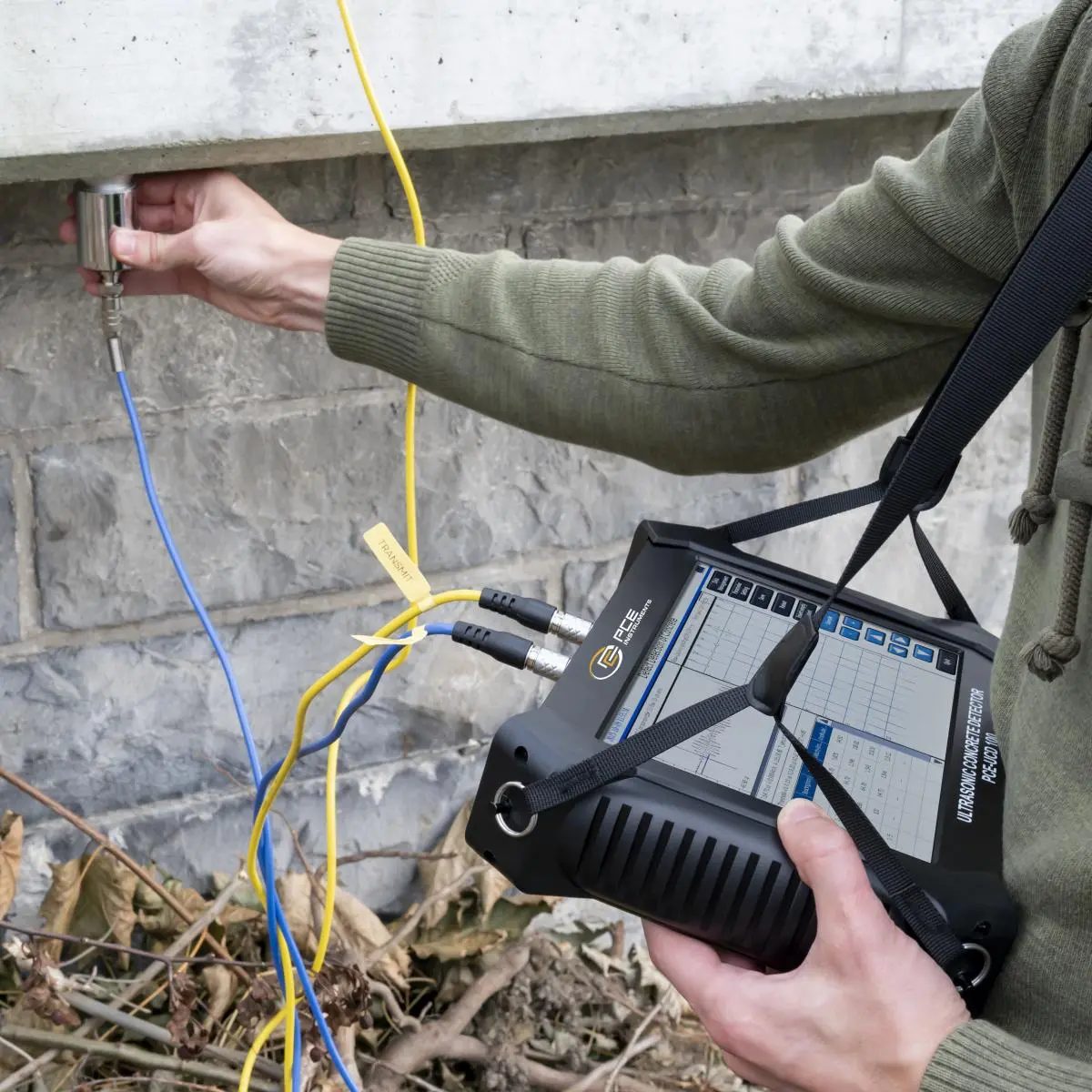

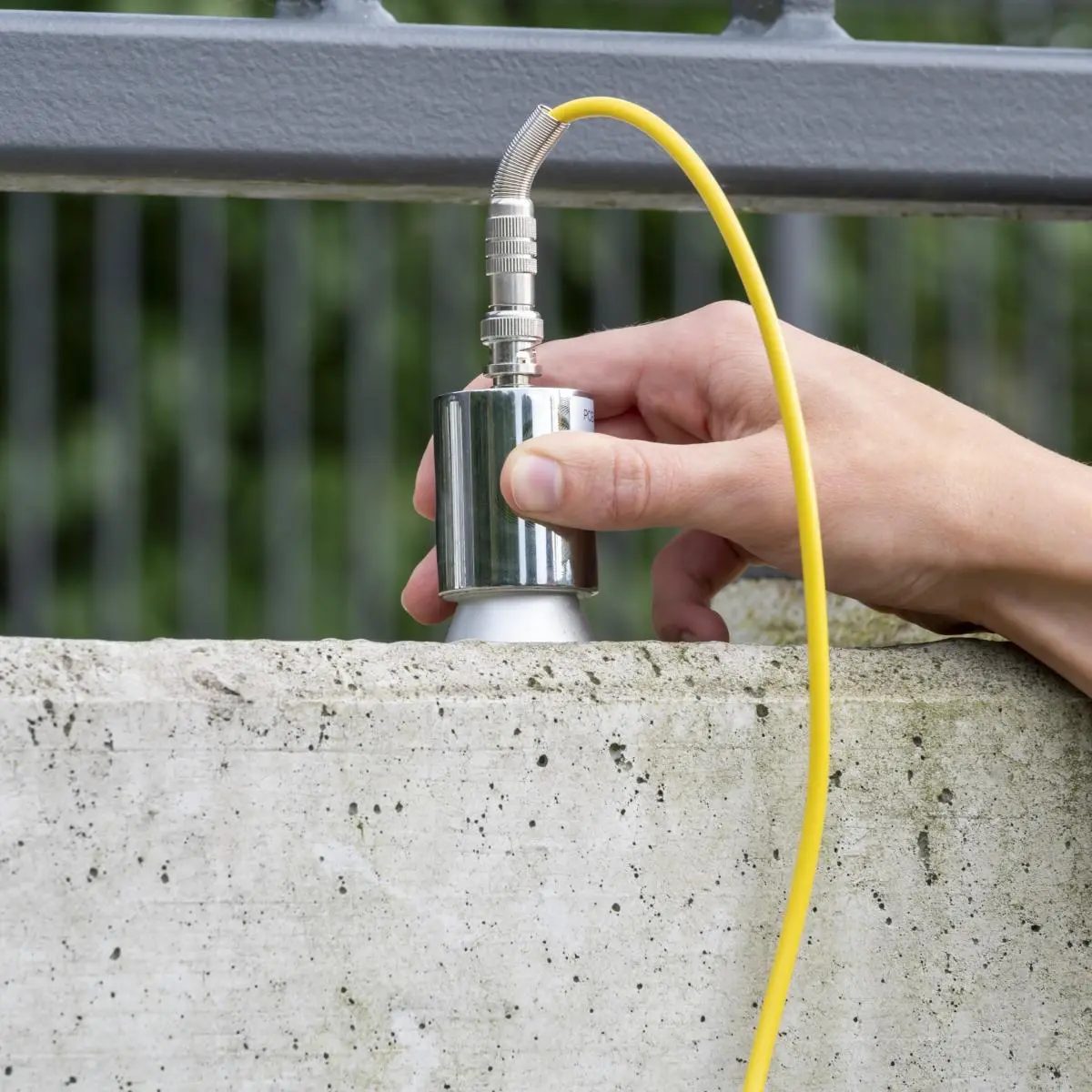

The ultrasonic tester / ultrasonic testing is specifically designed to accurately measure concrete strength and detect flaws such as voids and cracks. It enables measurements on concrete piles, concrete beams, and other concrete structures.

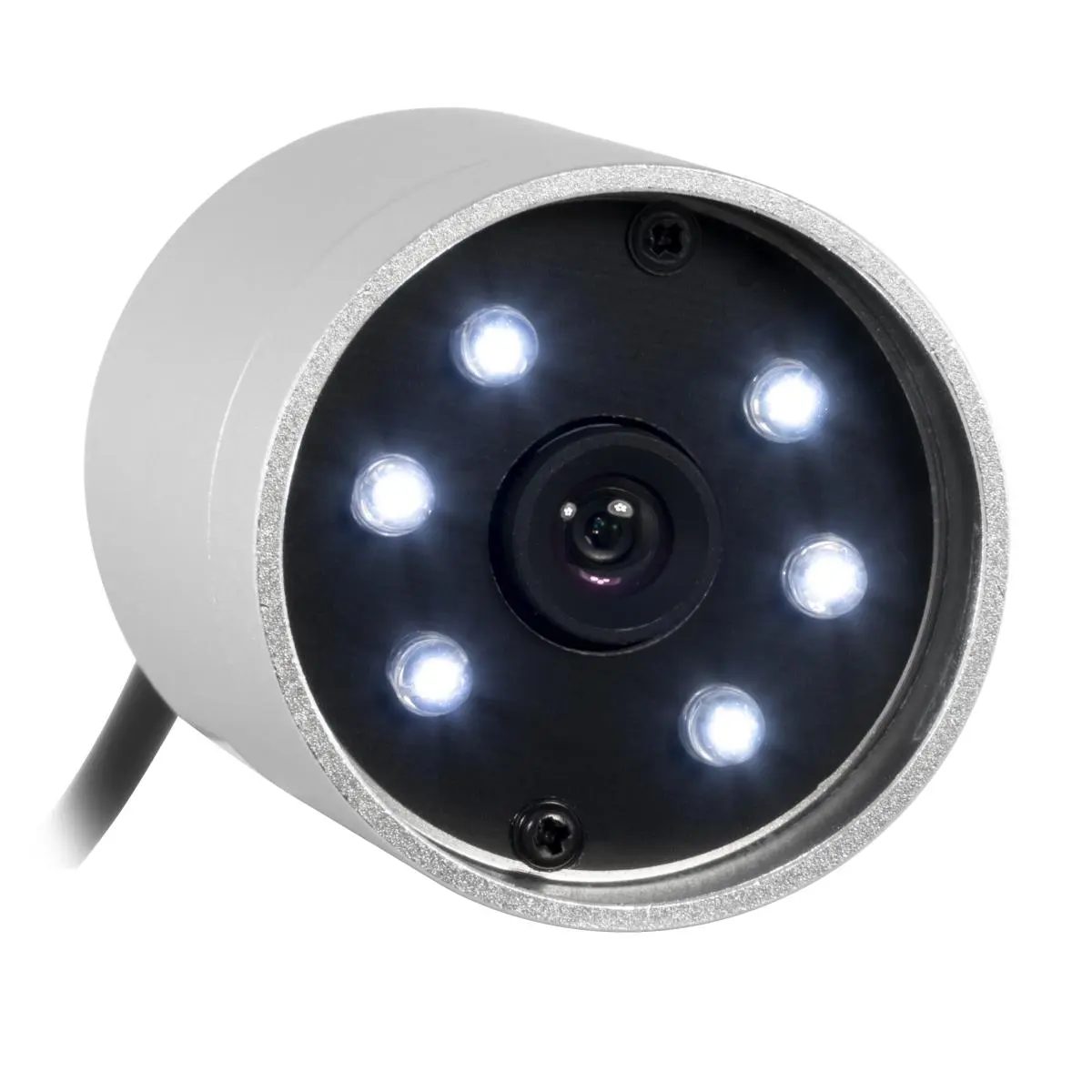

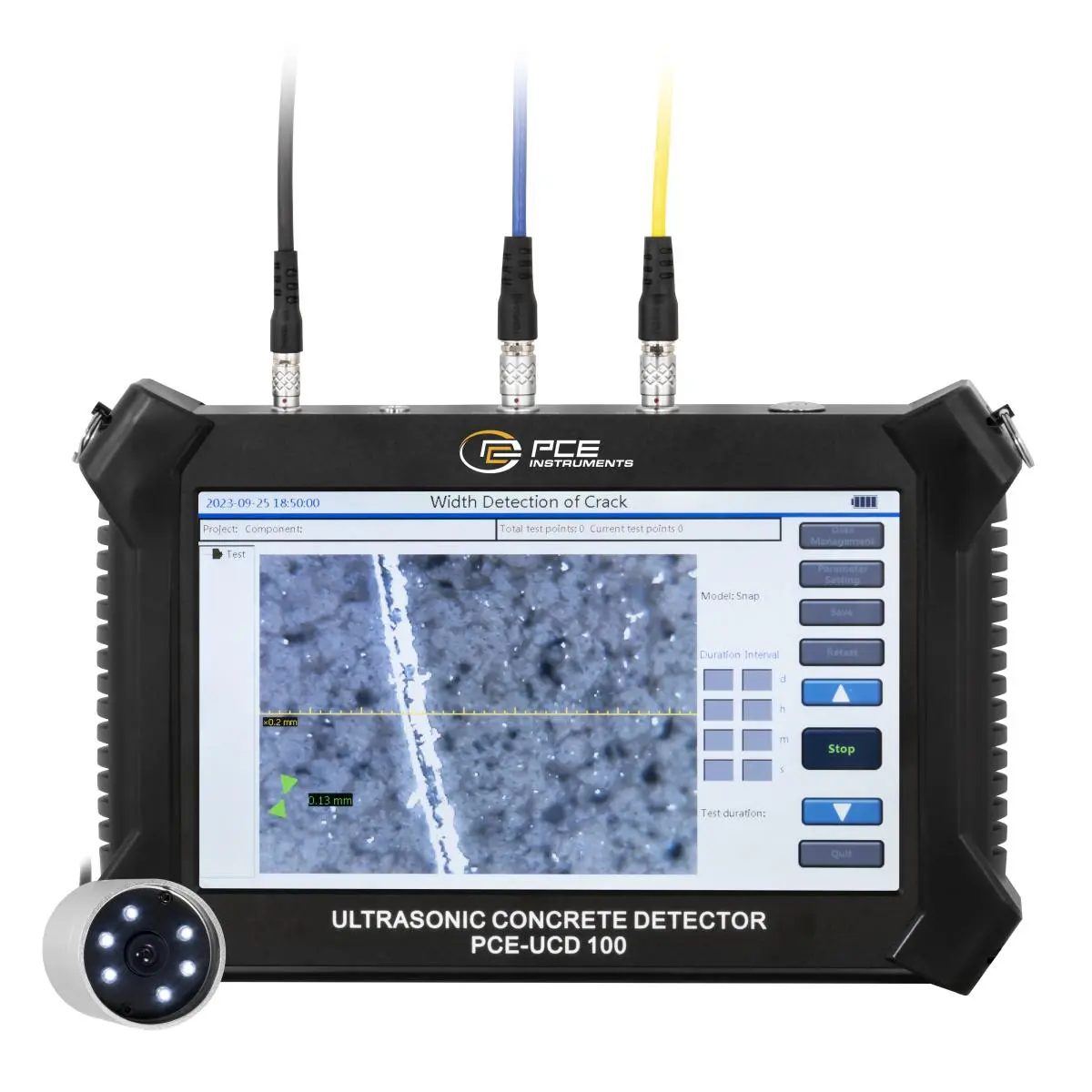

The camera allows for high-resolution capture of cracks and facilitates precise measurement of crack width directly on the ultrasonic tester / ultrasonic testing. With an impressive bandwidth of 1 to 500 kHz, the ultrasonic tester / ultrasonic testing covers a wide frequency spectrum, enabling accurate and reliable measurement in various concrete structures. The ultrasonic tester / ultrasonic testing features a 10.1″ TFT touchscreen display that provides a clear and intuitive user interface.

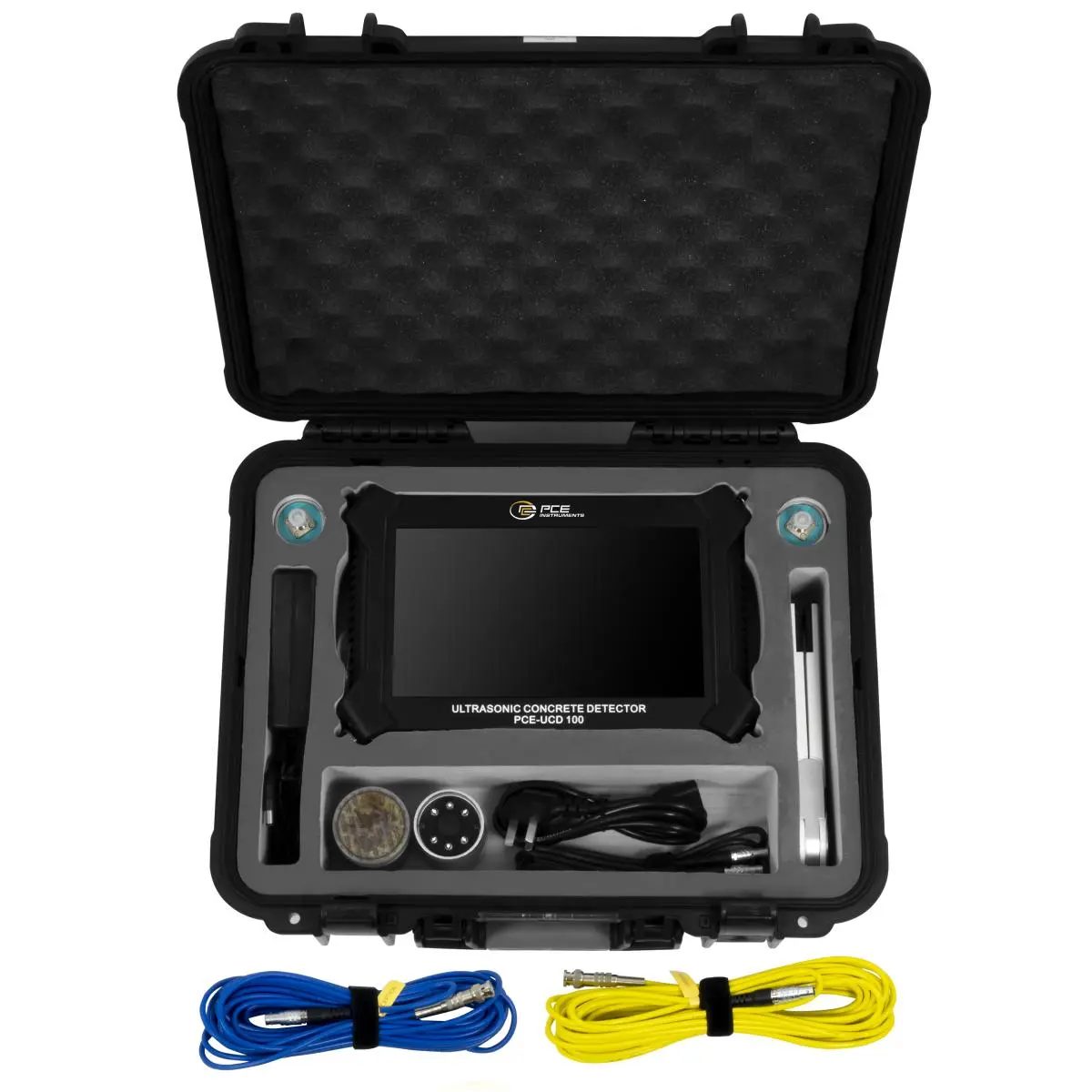

The ultrasonic tester / ultrasonic testing comes in a robust carrying case, which not only enables easy transportation but also protects the ultrasonic tester / ultrasonic testing from impacts and moisture. With an internal storage of 8 GB, measurement data, images, and other information can be easily stored and transferred to the provided software.
Highlights
- Measurement on concrete piles, concrete beams
- Measurement parameters: Concrete strength, error detection, size and depth of
- voids, cracks
- Includes a camera for measuring crack width
- Bandwidth 1 to 500 kHz
- Display: 10.1″ TFT touchscreen display
- Sturdy carrying case
- Internal storage: 8 GB
Technical specifications
- Acoustic signal range — Measuring range: -1677700 … +1677700 µS
- Acoustic signal range — Resolution: 0,05 µS
- General technical data — Measuring functions: Detection of concrete piles, Concrete strength, Depth and width of blowholes, cracks
- General technical data: Measuring interval 0.05 … 409.6 µS
- General technical data — Display type: TFT colour display
- General technical data — Display size: 10,1 Inch

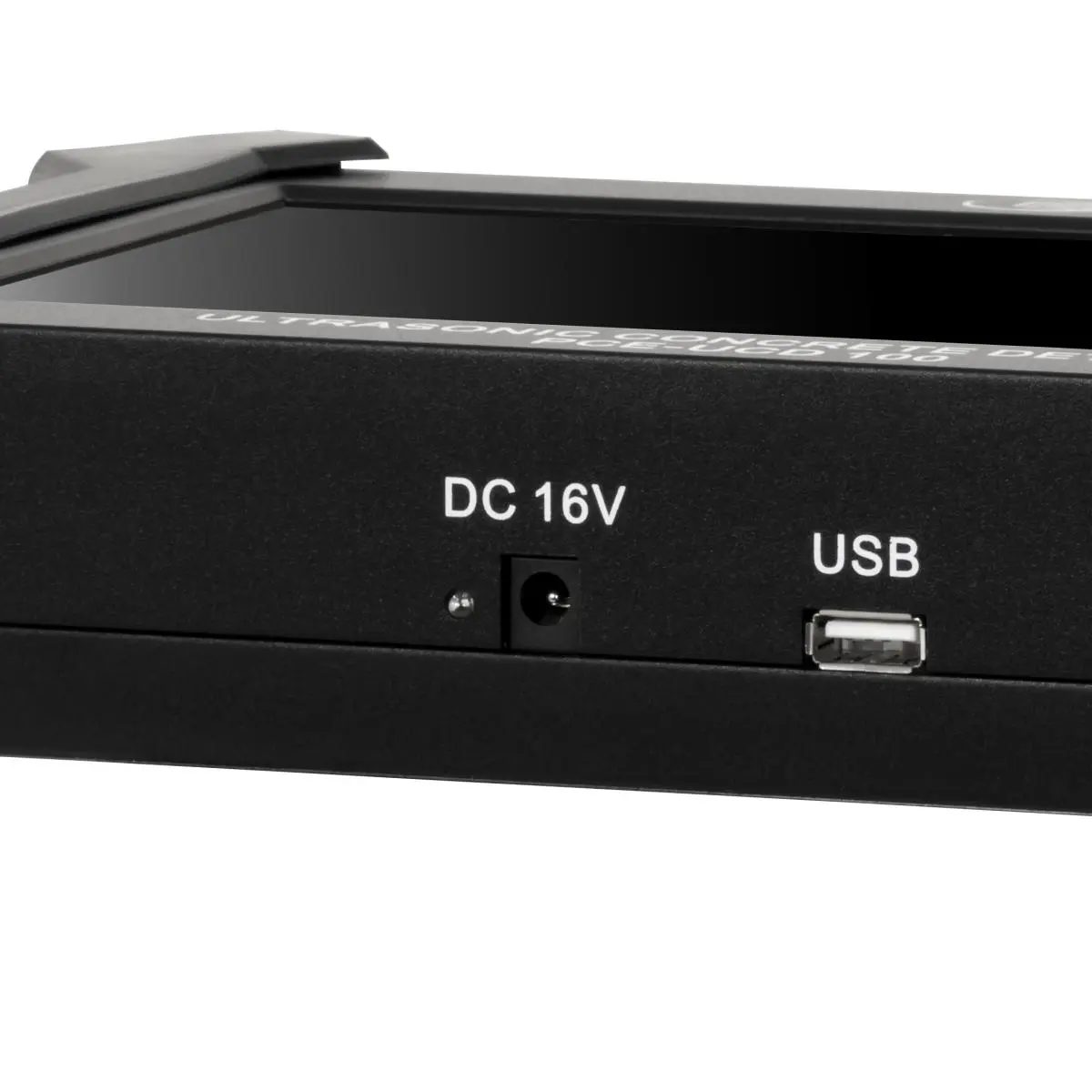

- General technical data — Interface: USB
- General technical data: Bandwidth 1 … 500 kHz
- General technical data: Test voltage 125V, 250V, 500V, 1000V
- General technical data: Gain range 146 dB
- General technical data — Menu language: English, Chinese
- General technical data — Protection class (device): IP20
- General technical data — Power supply: 11.1 V
- General technical data — Capacity: 8100 mAh
- General technical data — Operating conditions: 0 … 50 °C , 10 … 85 % RH
- General technical data — Storage conditions: 0 … 50 °C , 10 … 85 % RH
- General technical data — Dimensions: ( L x W x H )300 x 200 x 58 mm
- General technical data — Other dimensions: Sensor cable length: approx. 10 m
- General technical data — Weight: 2160 g
Delivery scope
- 1 x Ultrasonic Tester / Ultrasonic Testing PCE-UCD 100

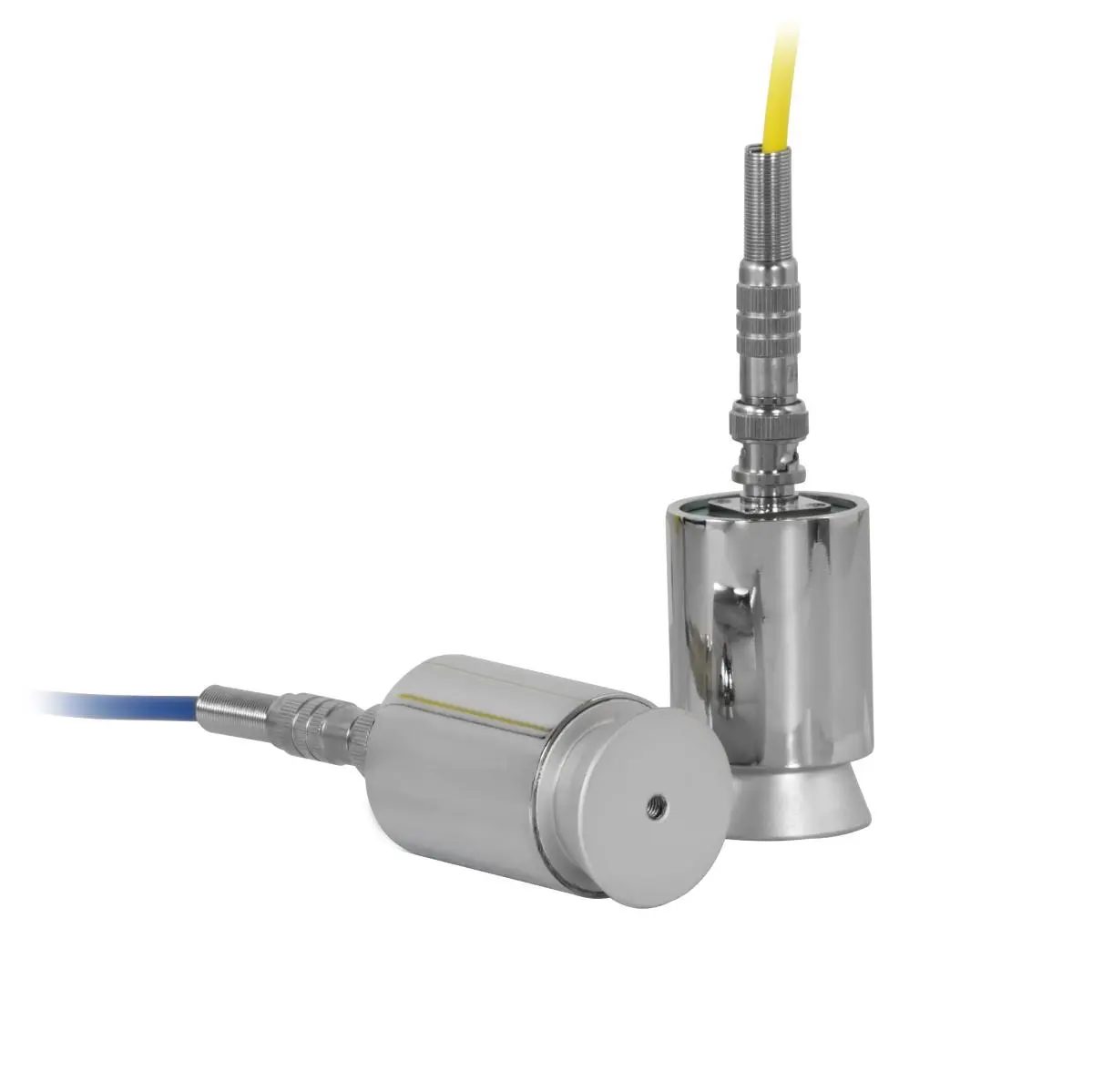

- 2 x Ultrasonic sensors
- 1 x Camera
- 1 x Ultrasonic contact gel
- 2 x Signal cables
- 1 x Camera cable
- 1 x Carrying strap
- 1 x USB stick with software
- 1 x Measurement template
- 1 x Mains adapter with IEC cable
- 1 x Plastic case
- 1 x User manual
