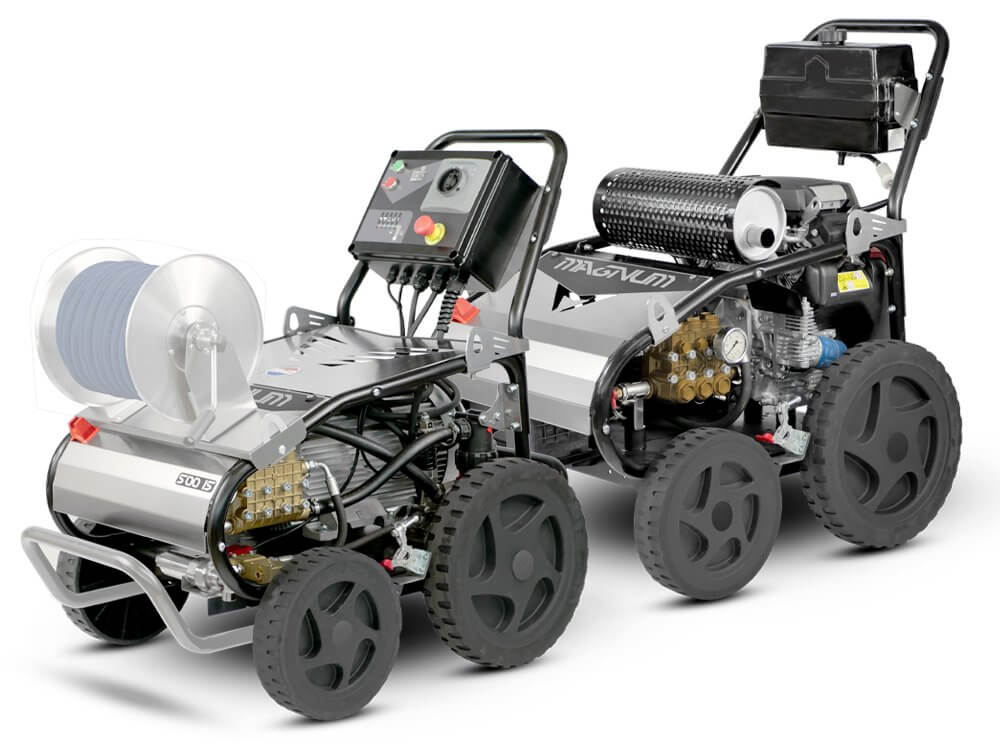

BIEMMEDUE MAGNUM – INDUSTRIAL COLD-WATER HIGH-PRESSURE WASHER
-
Triple-piston pump with three ceramic pistons and a brass head
-
1,450 rpm motor (E version)
-
Star-Delta Motor Starter (Version E)
-
Motor Circuit Breaker (Version E)
-
Delayed Full Stop (E-version)
-
Secondary control circuit, 24 V low voltage
-
Hour Counter (Version E)
-
Easy-to-operate bypass valve (model 500 Bar)
-
Safety Valve (500 bar model)
-
Powder-coated metal frame with an AISI 304 finish
-
Self-cleaning inlet water filter
-
Heavy-duty wheels (2×300 mm – 2×400 mm)
-
Model 4 with lifting hooks
-
Lance holder
-
Parking brake with safety lock
-
Thermal Protection Valve (Model 4S)
-
Tube with a swivel side handle mount
-
Stainless steel nozzle with ceramic tip (model 500 Bar / 7100 psi)
The Biemmedue Magnum series consists of high-quality gasoline-powered pressure washers suitablefor professional use, manufactured in Italy from top-quality materials. The Biemmedue Magnum is a reliable, durable product capable of continuous operation for several hours; it isa very powerful three-phase 400 V pressure washer that can reach pressures of up to 500 bar, depending on the model. The machine is equipped with a connecting rod pump featuring ceramic pistons and a brass head ( IP 66 ), with a flow rate of 900–2,460 l/h and a high-performance pump operating at just 1,450 rpm, thus preventing overheating during prolonged operation. During operation, it is capable of operating at a maximum temperature of 40°C.
Pressure vs. Current
In a pressure washer, the main emphasis is usually placed on the pressure factor (the force exerted by the water on the surface being cleaned), but the flow factor (the volume of water delivered by the pump over a period of time
) is just as important, if not more so.
Triplex Pump vs. Axial Pump
A triplex pump (a three-piston connecting rod system) is preferred for demanding and continuous applications and for professional use
, whereas the axial pump (in which the three pistons move forward via a rotating swash plate and return via spring force)
is mostly used for household purposes and is intended for light-duty use. All Biemmedue pressure washers (except for entry-level models)
are manufactured exclusively with piston pumps.
Hot Water vs. Cold Water
Hot-water pressure washers are used to remove greasy, water-insoluble, and stubborn dirt. The heat generated by the hot water helps
wash away dirt more quickly and ensures that surfaces dry fast. The water is heated in a
boiler powered by a high-performance gasoline or diesel engine, which is Biemmedue’s greatest strength thanks to the design and construction technology and know-how of its boilers and combustion chambers,
accumulated over the years as a world-leading manufacturer of heating equipment. In a cold-water pressure washer, the advantages of hot water
are replaced by the use of specific cleaning agents, which, depending on their chemical composition, can target different types of dirt. The cold-water
pressure washer is more compact and is therefore ideal for locations where space-saving design and maneuverability are required.
Electric vs. Internal Combustion Engine, Single-Phase vs. Three-Phase
The choice depends largely on the application. For this reason, Biemmedue has developed a complete range of different configurations, which are illustrated on the following pages at
.
