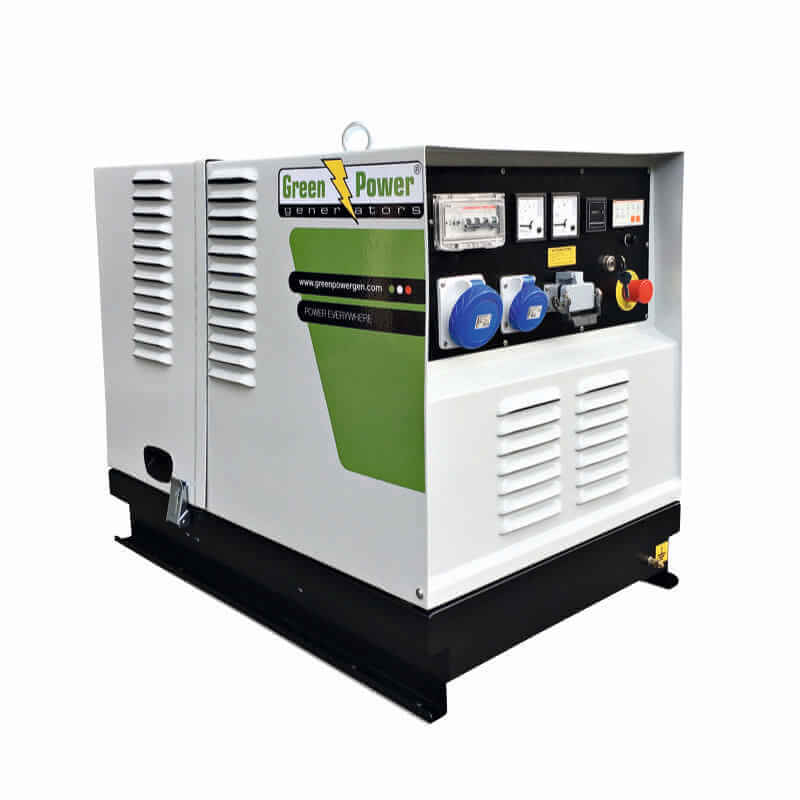

GREEN POWER GP 10000SM/LDE Single-Phase 9.7 kW Diesel Electric Generator
GREEN POWER GP 10000SM/LDE SILENT Single-Phase Electric Start Electric Generator, 9.7 kVA
The GREEN POWER GP 10000SM/LDE single-phase generator is equipped with a KOHLER 425-2 diesel engine and a capacitor voltage regulator ( AVR optional ).
The GREEN POWER GP 10000SM/LDE is equipped with an electric start and offers low fuel consumption; in fact, at 75% load, it consumes only 2.5 liters per hour, providing up to 8 hours of runtime.
The GREEN POWER GP 10000SM/LDE generator is equipped with a sound-insulated enclosure that opens in two sections, made of 20/10 sheet metal, with Class 1 sound insulation material and an internal muffler. Thanks to these features, the generator can be considered ultra-quiet, with noise levels measured at just 75 dB at a distance of 7 meters from the source.
The generator ensures efficient and quiet operation thanks to the KOHLER KD 15440 engine, which delivers a maximum output of 9.7 KVA.
ATS AUTOMATIC START-UP FRAME
The GREEN POWER GP 10000SM/LDE generator is designed for use with an ATS automatic start panel. Thanks to this, you no longer have to worry about power outages; in the event of a power outage, this panel automatically turns on the generator, allowing you to continue your business operations.
The generator control panel consists of:
– Thermomagnetic circuit breaker and insulation monitoring
– Outlets: 1 x 16A 3P 230V / 1 x 32A 3P 230V
– ATS layout
– Voltmeter
– Ammeter
– Hour meter – Ignition switch –
Emergency stop button
Phase type: single-phase
Continuous operation Power: 8.8 kVA / 8.8 kW
Maximum power: 9.7 kVA / 9.7 kW
Engine: KOHLER 425-2
Motor speed: 3,000 rpm
Emissions Standard: No emissions
Amplification: electric fuel
: diesel fuel pressure
: 230 V
50 Hz
Outlet Frame: 1 x 16A 3P 230V / 1 x 32A 3P 230V
Tank capacity: 20 l
Range at 75% load: 8 hours
Consumption at 75% load: 2.5 L/h
Sound pressure: @dB(A) 5 at 7 m
Length: 940 mm
Width: 650 mm
Height: 840 mm
Dry weight: 235 kg
Two-wheeled slow-speed trailer with handles – 315 euros + km
Radio remote start (100–150 m) – 700 euros + km
Automatic mains failure panel with ATS + manual – 830 euros + km
