Kahe sisendiga tsentrifugaalventilaatorid TDA – SR Tecnifan

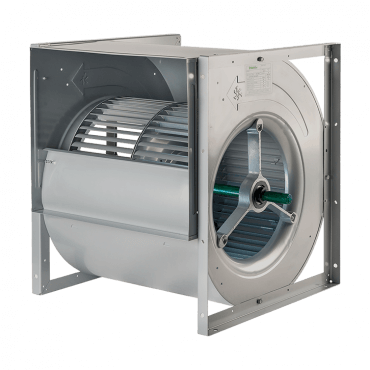

Kahe sisendiga tsentrifugaalventilaatorid, pooltugevdatud seeria, valmistatud galvaniseeritud terasest, kvaliteet Z-275. Vaba väljundvõll rihmülekande jaoks. Sisaldab topeltvõlli otsa ja kuupraami, mis hõlbustab kokkupanekut kaheksas võimalikus asendis.

Ettepoole suunatud tiivik on valmistatud sisseehitatud labadega, mis annab ventilaatorile suure jäikuse ja suure jõudluse. Laagrid on jäigad, isereguleeruvad kuullaagritüübid, suletud ja määritud kogu eluea jooksul.

Väikeseeria konstruktsioon on tehtud külgraamide ja tugiristõlaga ning suurseeria sisaldab kolmnurkse konstruktsiooniga raami ja laagrituge.

  • Saadaval laos
Tastuta transport Tellimustele üle 250€
14-päevane tagastus Muretu ostuõigus
Proair turvaline partner

Kahe sisendiga tsentrifugaalventilaatorid TDA – SR Tecnifan

Kahe sisendiga tsentrifugaalventilaatorid, pooltugevdatud seeria, valmistatud galvaniseeritud terasest, kvaliteet Z-275. Vaba väljundvõll rihmülekande jaoks. Sisaldab topeltvõlli otsa ja kuupraami, mis hõlbustab kokkupanekut kaheksas võimalikus asendis.

Ettepoole suunatud tiivik on valmistatud sisseehitatud labadega, mis annab ventilaatorile suure jäikuse ja suure jõudluse. Laagrid on jäigad, isereguleeruvad kuullaagritüübid, suletud ja määritud kogu eluea jooksul.

Väikeseeria konstruktsioon on tehtud külgraamide ja tugiristõlaga ning suurseeria sisaldab kolmnurkse konstruktsiooniga raami ja laagrituge.



Tüüp Suurus tollides Max Kiirus (min) Maksimaalne abs võimsus (kW) Max Õhuvool (m2/h) Max Kogurõhk (Pa) Ligikaudu Kaal (kg) Tehnilised andmed
SR T2SR SR T2SR SR T2SR SR T2SR SR T2SR
TDA 7/7 – SR 7/7 2700 2500 1.2 1.5 3100 6200 960 770 6 13
TDA 9/7 – SR 9/7 2100 2100 1.5 2 4250 8500 1090 890 10.5 20
TDA 9/9 – SR 9/9 2100 2100 1.7 2 5100 10200 1000 830 11.5 22
TDA 10/8 – SR 10/8 1900 1900 2 3 5150 10300 1130 1000 12 25
TDA 10/10 – SR 10/10 1900 1900 2.5 3 6100 12200 1170 960 13.5 28
TDA 12/9 – SR 12/9 1600 1600 3 3.5 6850 13700 1260 1010 17 33
TDA 12/12 – SR 12/12 1600 1600 3 3.5 8550 17100 1050 800 18.5 40
TDA 15/11 – SR 15/11 1300 1200 4 5 9700 19400 1080 830 23.5 45
TDA 15/15 – SR 15/15 1300 1100 4.5 6 12350 24700 1000 700 27.5 60
TDA 18/13 – SR 18/13 1100 1000 5.5 7 13300 26600 1140 870 33 72
TDA 18/18 – SR 18/18 1100 1000 6 7 17300 34600 1020 750 38.5 82

Suur seeria

Tüüp Suurus tollides Max Kiirus (min) Maksimaalne abs võimsus (kW) Max Õhuvool (m2/h) Max Kogurõhk (Pa) Ligikaudu Kaal (kg) Tehnilised andmed
TDA 20/15 SR 20/15 900 7.5 19650 900 63
TDA 20/20 SR 20/20 800 7.5 23550 690 75.5
TDA 22/15 SR 22/15 800 8 23150 830 66
TDA 22/20 SR 22/20 750 8 27100 740 75
TDA 22/22 SR 22/22 700 8 29500 640 83
TDA 25/20 SR 25/20 550 9 34200 560 88
TDA 25/25 SR 25/25 550 9 39350 570 100
TDA 30/20 SR 30/20 550 11 40850 800 95
TDA 30/28 SR 30/28 450 11 53800 590 126



Tehniline kataloog TDA – SR
Commercial Brochure TDA – SR

RUBBER TYPE ANTIVIBRATION MOUNTS

Rubber type antivibration mounts are supplied as an option in groups of 4 with the necessary screws for their assembly. They are selected taking into account the weight and the RPM of the motor-fan.

SPRING TYPE T+P ANTIVIBRATION MOUNTS

Spring type antivibration mounts are supplied as an option in groups of 4 with the plate and the necessary screws for their assembly. They are selected taking into account the weight and the RPM of the motor-fan.

ANTI-SPARK CONSTRUCTION

Fans are built according to Standard UNE-EN 14986. The anti-spark construction contains inlet guard protection as well as cooper side plates or cooper inlet based on the fan size.

INLET FLANGE (NOT MOUNTED) – S/I

Manufactured in galvanized steel, it is adapted to the inlet of single inlet fans. It is supplied separated, not mounted.

INLET FLANGE (MOUNTED) – S/I

Manufactured in galvanized steel, it is adapted to the inlet of single inlet fans. It is supplied mounted.

OUTLET FLANGE (NOT MOUNTED) – D/I

Manufactured in galvanized steel, it is adapted to the outlet of double inlet fans. It is supplied separated, not mounted.

OUTLET FLANGE (MOUNTED) – D/I

Manufactured in galvanized steel, it is adapted to the outlet of double inlet fans. It is supplied mounted.

OUTLET FLANGE (NOT MOUNTED) – S/I

Manufactured in galvanized steel, it is adapted to the outlet of single inlet fans. It is supplied separated, not mounted.

OUTLET FLANGE (MOUNTED) – S/I

Manufactured in galvanized steel, it is adapted to the outlet of single inlet fans. It is supplied mounted.

MOTOR SUPPORT BENCH

Manufactured in galvanized steel, it has a swing bench with a pivot point to facilitate the tightening of the transmission.

SHAFT GUARD – S/I

Galvanized omega-shaped element with bores that allow its cooling, to cover the shaft and bearings of single inlet fans.

FLEXIBLE CONNECTION HM (NOT MOUNTED)

Manufactured in polyester canvas + PVC. It is supplied separated, not mounted. It can be fixed to the air intake front part from one side, and by means of a connection flange in the opposite side.

FLEXIBLE CONNECTION HM (MOUNTED)

Manufactured in polyester canvas + PVC. It is supplied mounted on the front part of the motor-fan group. It can be fixed to the air intake front part from one side, and by means of a connection flange in the opposite side.

DRAIN PLUG

Manufactured in brass and placed at the lowest part of the fan to facilitate the drain of the capacitors.

EXTERNAL GREASE NIPPLE

External grease nipple that allows the lubrication of the bearings. Made up of a PVC tube and two connectors at each end.

THREE-SPEED MOTOR

Optionally, the TMD series can be supplied with a three-speed motor, closed motor (IP54), 4 o 6-poles single phase motor, insulation class F, with integrated connections box and stuffing box.

SUPPORT FEET SET

Manufactured in galvanized steel with stamped reinforcements, it is supplied with screws and rubber type antivibration mounts for its assembly.

EPOXY PAINT

Casing, impeller, frame and deflector are finished with a high-durability and resistant EPOXY paint, and a high-performance EPOXY varnish.

SHAFT POINT GUARD

Metal protection painted in epoxy RAL 3000, which prevents the contact with the shaft.

INSPECTION FOOR

Manufactured in galvanized steel with 4 different mounting positions.

SINGLE PHASE SPEED REGULATOR

It controls the speed and torque of the AC motors by converting frequency physical values and mains voltage to infinitely variable magnitudes, while keeping constant the relation between them. Designed for fans with single phase motor.

INLET GUARD (NOT MOUNTED)

Manufactured in galvanized steel according to Standard Security Regulation UNE 100250. It is supplied separated, not mounted.

INLET GUARD (MOUNTED)

Manufactured in galvanized steel according to Standard Security Regulation UNE 100250. It is supplied mounted.

SEALING FOR SHAFT – S/I

Aluminum and special resin discs to prevent the entry of particles or corrosive elements in the single inlet fans.

MOTOR SUPPORT BRACKET

Manufactured in galvanized steel, it enables the motor to be mounted directly on the housing. It is supplied with tensor, rubber protection and screws.

SLIDING MOTOR BASE

Manufactured in galvanized steel, it allows the adjustment of the transmission and the motor. Available in 3 sizes for motors with housing from frame size 63 to 180.

KKK
